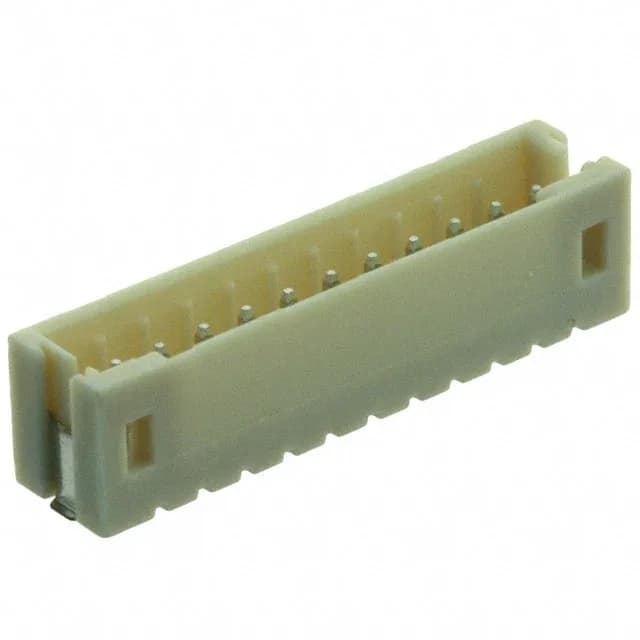

TE Connectivity AMP Connectors High Performance Interconnect (HPI) series, 1-1775470-1, 11-position single-row shrouded header, 2.00 mm pitch, SMT, tin-plated contacts, 3 A, 250 V, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.242\" (6.14mm) |
| Insulation material | Polyamide (PA9T), Nylon 9T |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 11 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.138\" (3.50mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
Operating temperature range is -25°C to 85°C, with a UL94 V-0 PA9T housing. The nylon 9T material resists high reflow temperatures and absorbs less moisture than standard nylon — a practical advantage for automotive and industrial boards that see thermal cycling.
The qualification scope means the connector has passed the vibration, temperature, and humidity profiles typical of those sectors.
Single row, 11 positions, 2.00 mm pitch. All positions loaded. The mating pin length is 0.138 in (3.50 mm).
