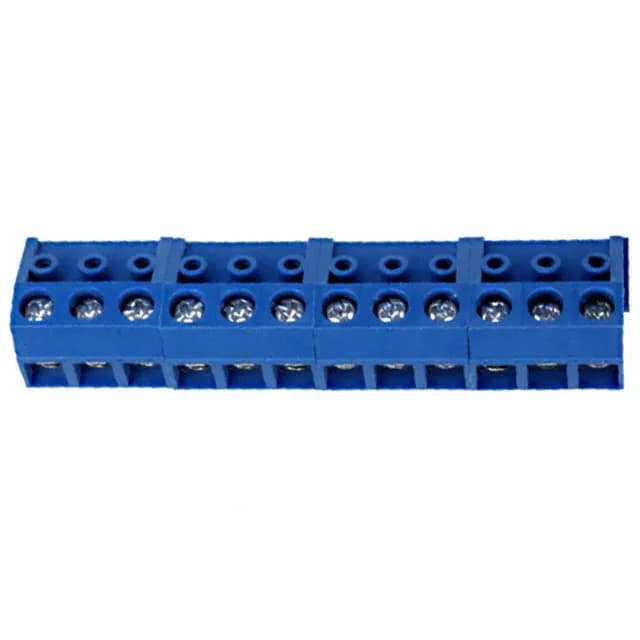

1-1776263-2 - TE Connectivity AMP Connectors
MPN1-1776263-2
Active
$9.5183Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug for Unshrouded Header |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Plug wire entry | 90° |
| Wire gauge or range - AWG | 16-24 AWG |
| Wire gauge or range - mm2 | 0.2-1.4mm² |
| Operating temperature | -40°C ~ 105°C |
| Color | Blue |
| Contact material | Brass |
| Insulation height | 0.433\" (11.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw size | M2.6 |
| Torque - screw | 0.34 Nm (3.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Leaf Spring, Wire Guard |
| Positions | 12 |
| Positions per level | 12 |
| Contact mating finish | Tin |
