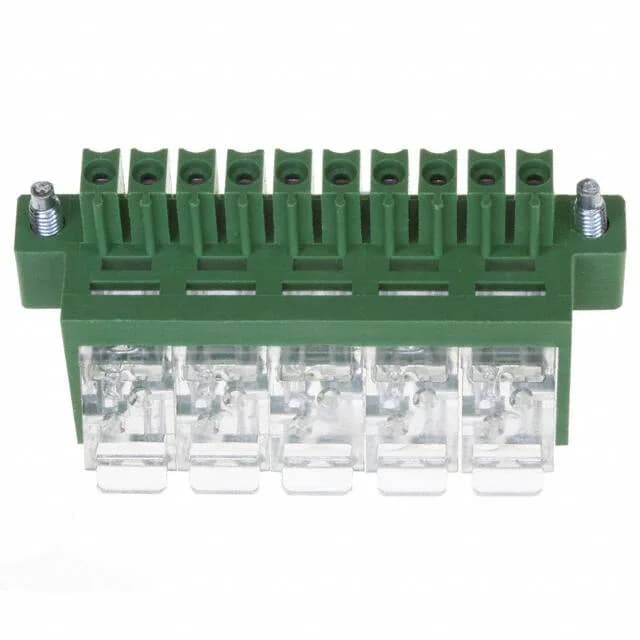

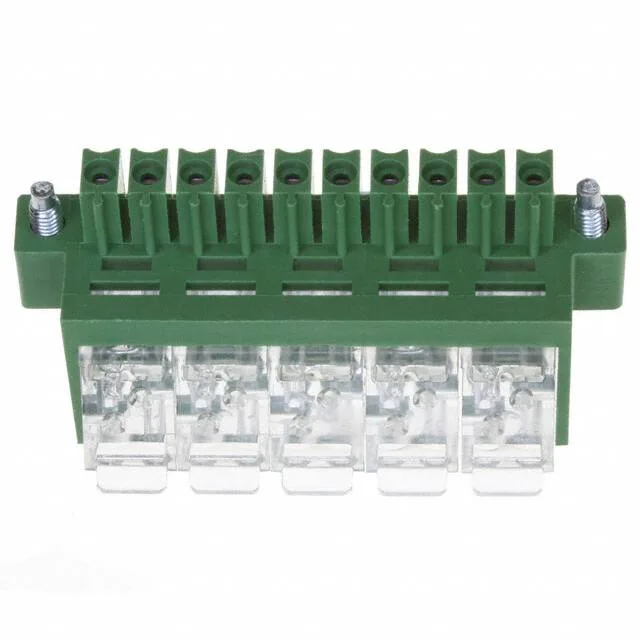

TE Connectivity Buchanan plug, female sockets, order code 1-1776283-0, 10 positions, single level, 0.138" (3.50mm) pitch, 5 A, 250 V, tin-plated mating contacts, free-hanging in-line, IDC termination, bulk.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 250 V |
| Current - UL | 5 A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 22-24 AWG |
| Wire gauge or range - mm2 | 0.2-0.4mm² |
| Operating temperature | -40°C~80°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyester |
| Parameter | Value |
|---|---|
| Insulation height | 0.463\" (11.76mm) |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | IDC |
| Positions | 10 |
| Positions per level | 10 |
| Contact mating finish | Tin |
The 1-1776283-0 is a 10-circuit IDC plug from the TE Buchanan series, terminated to 22-24 AWG (0.2-0.4mm²) solid or stranded wire with a 180° wire entry. Rated 5 A at 250 V with tin-plated copper alloy contacts and a polyester housing rated -40°C to 80°C.
TE Connectivity lists 1-1776283-0 as Obsolete with no official successor or second-source cross-reference.
22-24 AWG (0.2-0.4mm²) solid or stranded wire.
0.138" (3.50mm) pitch, 10 positions, single level.
