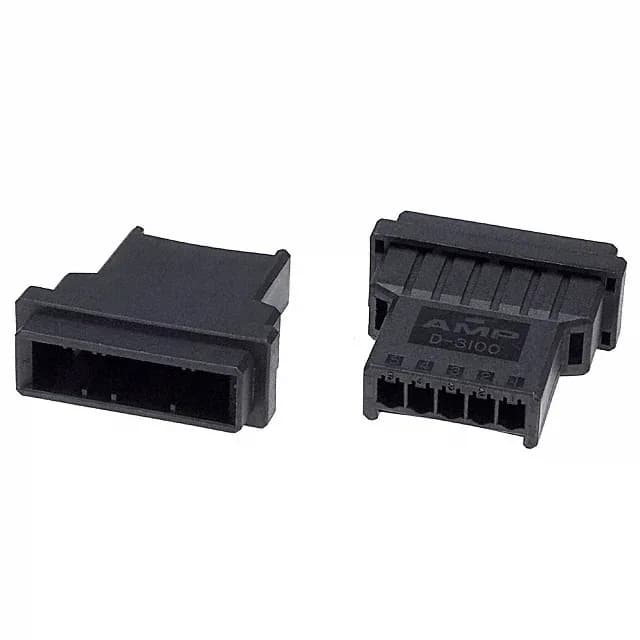

TE Connectivity Dynamic D-3100 plug housing, order code 1-177648-5, 5 positions, single row, 0.150" (3.81mm) pitch, free hanging (in-line), crimp termination, black, polarizing key.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Male Pin |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Features | Polarizing Key |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 5 |
The 1-177648-5 is the 5-position member of TE's Dynamic D-3100 plug housing line, accepting male pin contacts for crimp termination in a free-hanging (in-line) configuration. The housing is black thermoplastic, glass-filled polyester, with a polarizing key to prevent mis-mating. Contacts are ordered separately.
No — the housing is supplied without contacts. The note 'Contacts Not Included' is listed on the product record. Male pin contacts must be ordered separately and crimped to the wire.
The 1-177648-5 is a plug housing that mates with a Dynamic D-3100 series header. The exact mating header part number depends on the position count and mounting style required for the application.
