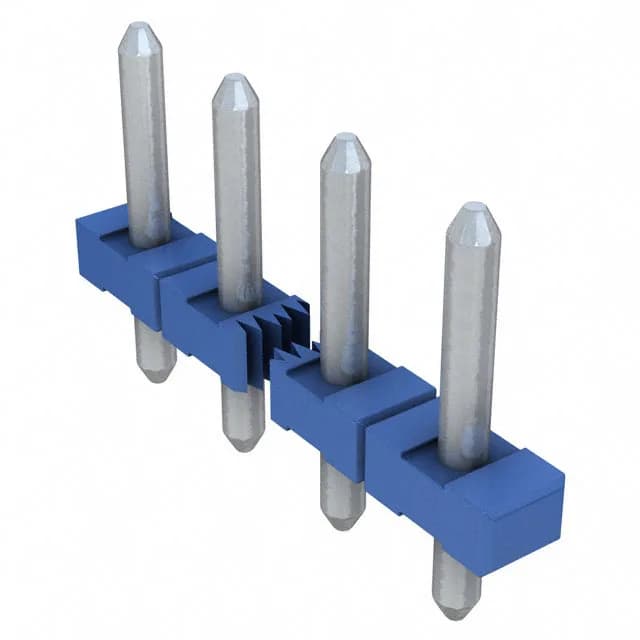

TE Connectivity AMP Connectors 1-1776489-8
MPN1-1776489-8
Obsolete
$0.5351Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Unshrouded |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 250 V |
| Current - UL | 10 A |
| Operating temperature | -55°C ~ 105°C |
| Color | Blue |
| Contact material | Brass |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.079\" (2.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 18 |
| Positions per level | 18 |
| Contact mating finish | Tin |
