TE Connectivity AMP Connectors 1-177665-2 — Pin Headers

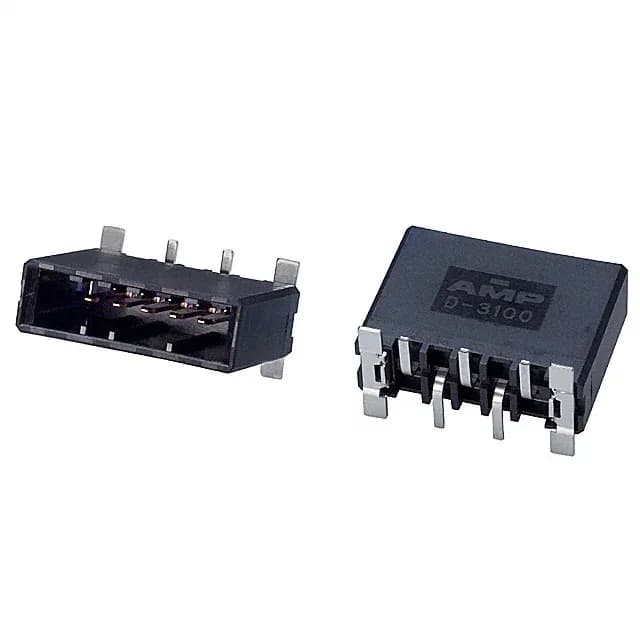

1-177665-2 TE Connectivity Dynamic D-3100 Header 5POS 3.81mm

MPN1-177665-2
Active

TE Connectivity AMP Connectors Dynamic D-3100 series, 1-177665-2, Board to Board or Cable, 5 Positions, 0.150" (3.81mm) Pitch, Surface Mount, Shrouded - 4 Wall, Solder Retention, Gold Mating Contact, Tube

$4.9900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDynamic D-3100
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-177665-2 key specifications
ParameterValue
SeriesDynamic D-3100
TypeTab
MountingSurface Mount
Connector typeHeader
Fastening typeDetent Lock
Voltage rating250V
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.890\" (22.61mm)
Insulation materialThermoplastic, Polyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

1-177665-2 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows1
Pitch0.150\" (3.81mm)
Positions5
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Single-row shrouded header for industrial signal routing

The 1-177665-2 is a 5-position single-row header from TE's Dynamic D-3100 series, pitched at 0.150" (3.81mm). It is a shrouded – 4 wall design, meaning the header is fully enclosed to prevent mis-mating and protect the contacts during handling.

Gold mating surface for repeated connect cycles

SMT mounting with detent lock

Mounted via surface-mount solder termination, the header uses a detent lock to secure the mating connector — a positive retention that resists vibration in industrial enclosures. The insulation height is 0.890" (22.61mm), giving clearance for the mating housing above the board.

Active sourcing and compliance

Sourced per RFQ — confirm the BOM quantity and lead time when requesting a quote.

Frequently asked questions

What is the mating connector for 1-177665-2?

This header mates with a Dynamic D-3100 series receptacle housing (crimp or IDC type) that shares the same 3.81mm pitch and 5-position single-row layout.
