The 5.08 mm pitch gives it a wider footprint than finer-pitch alternatives, which helps with wire routing and terminal insertion in larger-gauge applications.
The polarizing key ensures correct orientation on insertion — no mis-mating risk.

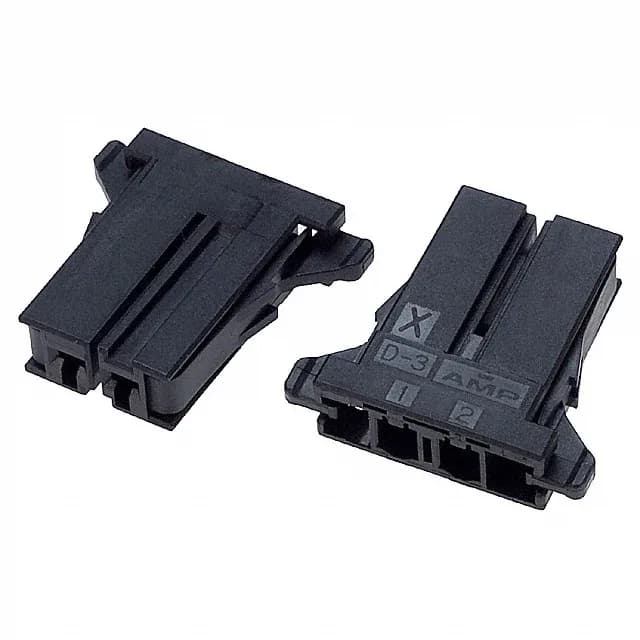

1-178128-2 TE Connectivity Dynamic D-3200 2-Pos Receptacle
MPN1-178128-2
Active
TE Connectivity AMP Connectors Dynamic D-3200, receptacle housing, 2 positions, 0.200" (5.08 mm) pitch, free-hanging inline, female socket crimp, black, polarizing key, contacts not included.
$1.0300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDynamic D-3200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Polarizing Key |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 2 |
Product details
Frequently asked questions
Does 1-178128-2 include contacts?
No.
What is the mating connector for 1-178128-2?
A Dynamic D-3200 series plug header with matching 5.08 mm pitch and 2 circuits. The polarizing key on the housing aligns with the keyway on the plug.
