TE Connectivity AMP Connectors 1-178128-6 — Connector Housings

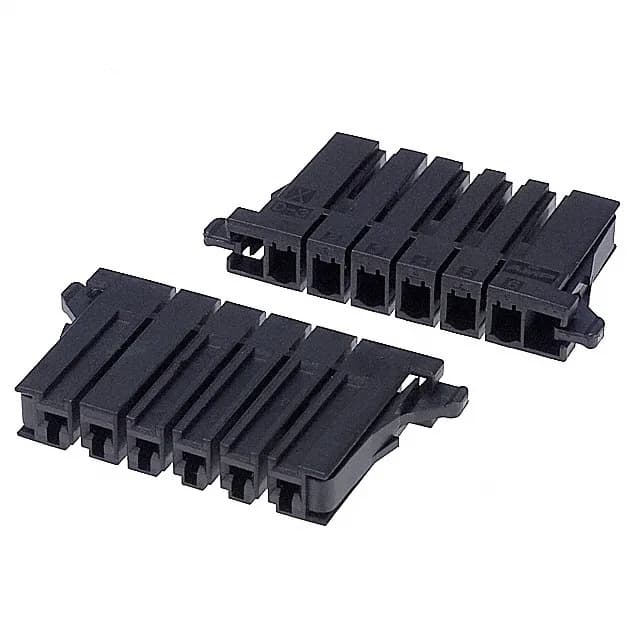

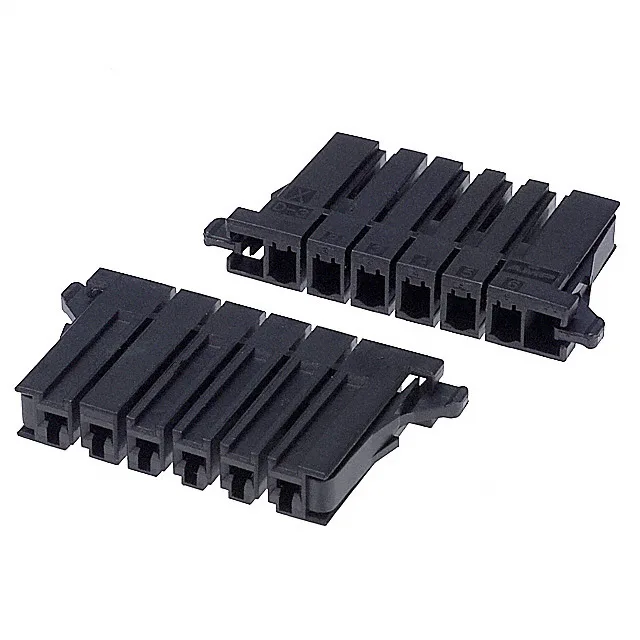

TE Dynamic D-3200 1-178128-6, 6 Pos Receptacle Housing

MPN1-178128-6
Active

TE Connectivity Dynamic D-3200 series, Receptacle, 6 Positions, 5.08mm Pitch, 1 Row, Crimp, Free Hanging, Polarizing Key, Black, Bulk.

$2.6000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-178128-6 datasheet (PDF)
RoHSROHS3 Compliant
SeriesDynamic D-3200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-178128-6 specifications
ParameterValue
SeriesDynamic D-3200
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.200\" (5.08mm)
PackageBulk
FeaturesPolarizing Key
Rows1
Contact terminationCrimp
Positions6

Product details

Dynamic D-3200 6-Position Receptacle Housing

A polarizing key is molded into the housing to prevent incorrect mating — a practical safeguard on the shop floor where multiple similar connectors share a harness.

Factor the terminal lead time into your BOM schedule.

Pitch, Keying, and Single-Row Routing

At 5.08 mm (0.200") pitch, this housing gives generous space per circuit — no crowding when terminating 16 AWG stranded wire with a standard crimp. The polarizing key prevents the 6-position plug from being forced into a different-position header, a real time-saver during field replacement.

Frequently asked questions

Where can I buy the TE 1-178128-6 housing?

The 1-178128-6 is available to order through our interconnect distribution desk. Submit an RFQ for current pricing and lead time — availability is confirmed at quote time, and we source against your BOM quantity. No stock-holding guarantee is made here; the quote reflects live channel supply.

What contacts fit the 1-178128-6 housing?

This housing accepts Dynamic D-3200 series female socket crimp terminals. The standard contact part numbers are 1-917806-1 (for 20-16 AWG) and 1-917806-2 (for 22-18 AWG). The contacts are ordered separately and require a TE-certified crimp tool for consistent pull-off force.

Does the 1-178128-6 have a polarizing key?

Yes, the housing includes a molded polarizing key as a standard feature. This prevents inserting the receptacle into a non-matching header, reducing assembly errors in multi-connector harnesses.
