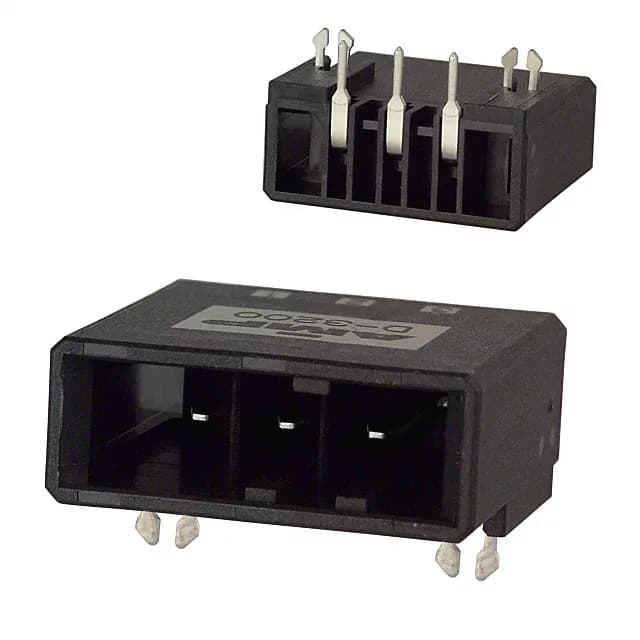

TE Connectivity AMP Connectors Dynamic D-3200 series header, 1-178138-5, 3 positions, 5.08 mm pitch, right-angle through-hole, shrouded 4-wall, detent lock, board lock, 600 V rating, tin-plated contacts, UL94 V-0, -55°C to 105°C
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 1-178138-5's single-row, 5.08 mm pitch layout is the better fit when you need higher voltage clearance or a simpler board routing for power distribution.
The mating pitch is 0.200" (5.08 mm), single-row. This is a wide pitch suited for higher-voltage applications up to 600 V.
Yes, it uses a detent lock — a positive latch that clicks when the mating receptacle is fully seated. This holds the connection against vibration.
