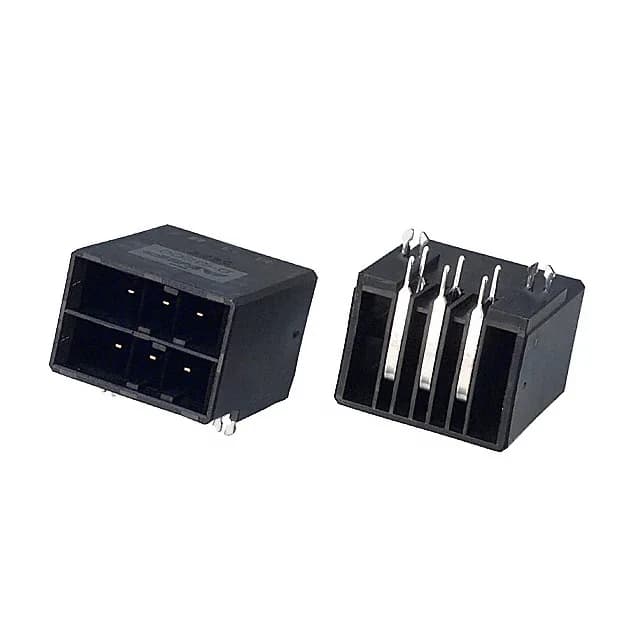

TE Connectivity AMP Connectors, Dynamic D-3200 series, Board to Board or Cable header, 6 circuits, 5.08mm pitch, 2 rows, right-angle through-hole, gold mating finish, board lock, UL94 V-0, Active.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.668\" (16.97mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 6 |
| Row spacing - mating | 0.300\" (7.62mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1-178139-2: This is a 6-position, dual-row header from TE's Dynamic D-3200 series, on a 5.08mm pitch. The 600V voltage rating and gold mating finish (15.0µin) suit it for signal or moderate power interconnects in general-purpose and industrial equipment.
A board lock on each end anchors the header through the solder process and resists pull-off from cable strain.
The mating pitch is 0.200" (5.08mm), with a row spacing of 0.300" (7.62mm).
Yes, it is ROHS3 compliant.
