TE Connectivity AMP Connectors, Dynamic D-3200 series, header, 6 positions, 0.200" (5.08mm) pitch, right-angle through-hole, shrouded 4-wall, gold-plated contacts, board lock, UL94 V-0, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.668\" (16.97mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 6 |
| Row spacing - mating | 0.300\" (7.62mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |

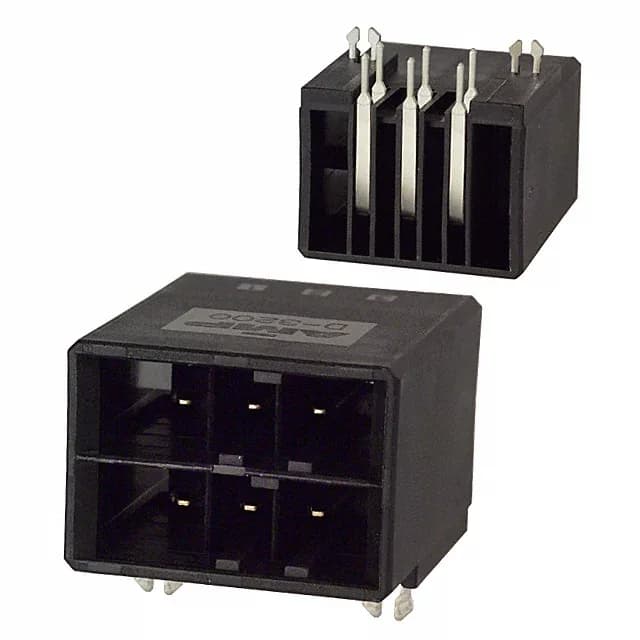

The 1-178139-3: This is a 6-position, 2-row header from TE's Dynamic D-3200 series, on a 0.200" (5.08mm) pitch with a 0.300" (7.62mm) row spacing.
The post tails are tin-plated for solderability.
This header mates with a Dynamic D-3200 series receptacle (socket housing) that accepts the corresponding crimp terminals. The 6-position, 2-row, 5.08mm pitch receptacle is the matching half. Confirm the specific receptacle part number from the Dynamic D-3200 family to complete the connection.
