6-position 5.08mm pitch right-angle header for industrial power and signal

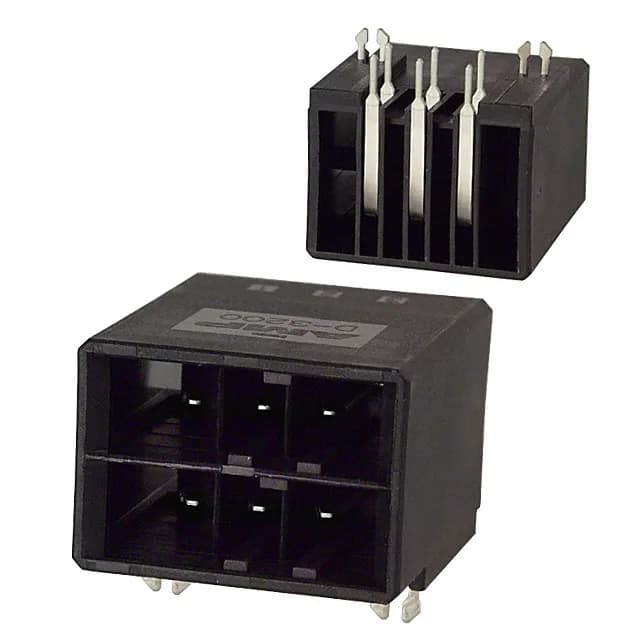

The 1-178139-5: This Dynamic D-3200 header carries 6 positions on a 5.08mm pitch in a right-angle through-hole package, built for board-to-board or cable connections in general-purpose and industrial applications. The 4-wall shrouding protects the rectangular tab contacts from mechanical damage during mating, and the detent lock gives a positive audible click that holds under vibration. Board locks on the mounting ears anchor the header to the PCB during wave solder, preventing skew from cable strain or handling before the solder solidifies.
Right-angle mounting and board lock for enclosure fit
The right-angle orientation places the mating face parallel to the PCB, saving vertical height — useful when the board sits close to a cover or panel. Insulation height is 0.668" (16.97mm) above the board, and the post length is 0.150" (3.81mm) for solder-through into standard 1.6mm PCBs. The glass-filled thermoplastic polyester housing carries a UL94 V-0 flammability rating and operates from -55°C to 105°C.
Active production and sourcing posture
Sourced to order against BOM quantities. Current pricing and lead time confirmed at quote — no stock-holding claim on this listing.
