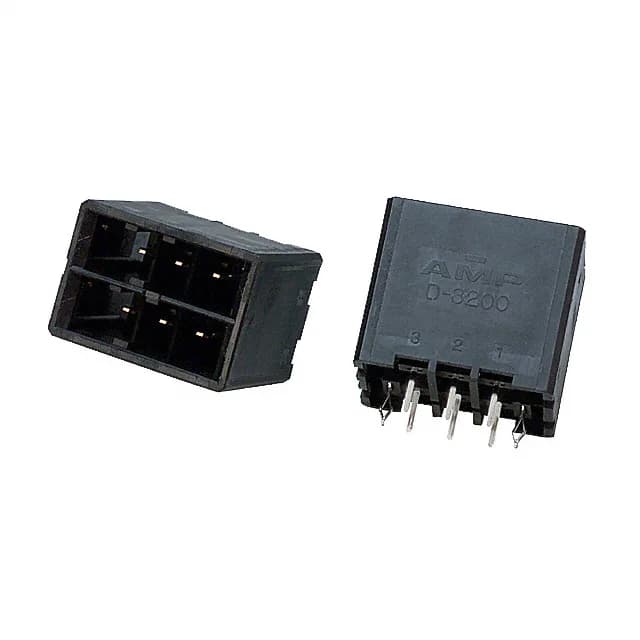

TE Connectivity AMP Connectors Dynamic D-3200 header, 1-178140-3, 6 positions, 2 rows, 5.08mm pitch, shrouded - 4 wall, through hole, gold mating, board lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Mated stacking heights | 31.00mm ~ 32.50mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 6 |
| Row spacing - mating | 0.300\" (7.62mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-178140-3 is a 6-position, 2-row header from TE's Dynamic D-3200 series, pitched at 5.08mm. It is a shrouded - 4 wall design with a detent lock, intended for board-to-board or cable applications in general purpose and industrial equipment.
The insulation height is 0.850" (21.59mm), and the mated stacking height range is 31.00mm to 32.50mm — useful when planning clearance to adjacent components in a cabinet.
The mating pitch is 0.200" (5.08mm), with a row spacing of 0.300" (7.62mm).
Yes, it includes a board lock feature for retention during soldering and vibration resistance.
Yes, it is ROHS3 compliant.
