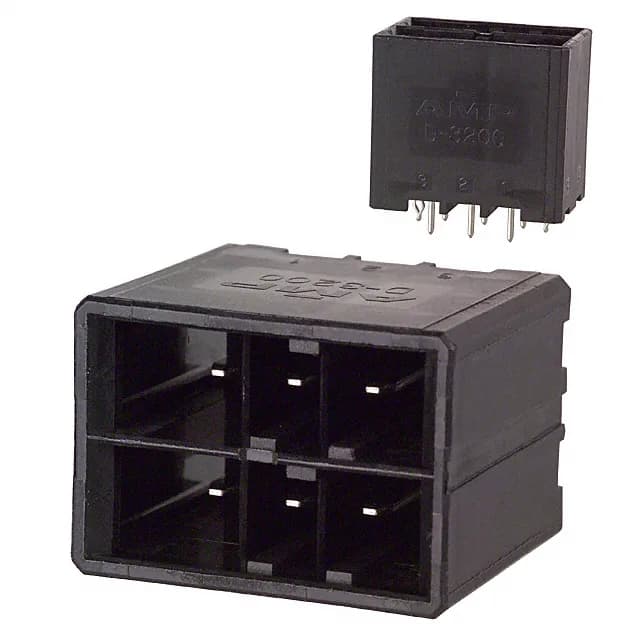

TE Connectivity AMP Connectors Dynamic D-3200 series, 1-178140-5, a 6-position, 2-row, 5.08mm pitch vertical header, shrouded 4-wall, tin-plated contacts, board lock, detent lock fastening, through-hole solder termination, rated 600V, -55°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Mated stacking heights | 31.00mm ~ 32.50mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 6 |
| Row spacing - mating | 0.300\" (7.62mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 1-178140-5 is a 6-position, 2-row header from the Dynamic D-3200 series, with a 5.08 mm mating pitch and 7.62 mm row spacing.
The detent lock fastening provides a positive retention click when the header mates with its receptacle — you should hear it seat.
Submit an RFQ with your target quantity and delivery window.
The 1-178140-5 is a shrouded 4-wall header that mates with a Dynamic D-3200 series receptacle housing — typically a 6-position, 5.08 mm pitch female connector with detent lock. Confirm the mating part number against your assembly drawing.
Yes, the 1-178140-5 is ROHS3 compliant.
