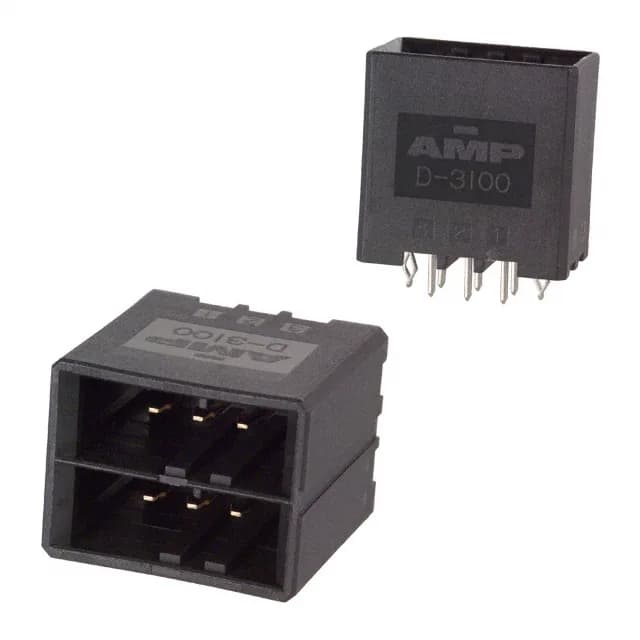

TE Connectivity AMP Connectors Dynamic D-3100 series, 1-178141-2, Board to Board or Cable header, 6 circuits, 3.81mm pitch, 2 rows, shrouded, gold mating finish, board lock, through-hole solder termination.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 6 |
| Row spacing - mating | 0.300\" (7.62mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1-178141-2 is a 6-position, 2-row header from the Dynamic D-3100 series, pitched at 3.81mm. That 0.150" pitch and 0.300" row spacing are the footprint numbers you need to match against the board layout before routing the traces.
The solder tails are tin, which wets well in lead-free wave solder. That temp range covers most cabinet interiors and outdoor telecom enclosures.
Submit an RFQ for current pricing and lead time — no minimum commitment.
The mating pitch is 0.150" (3.81mm), with a row spacing of 0.300" (7.62mm).
