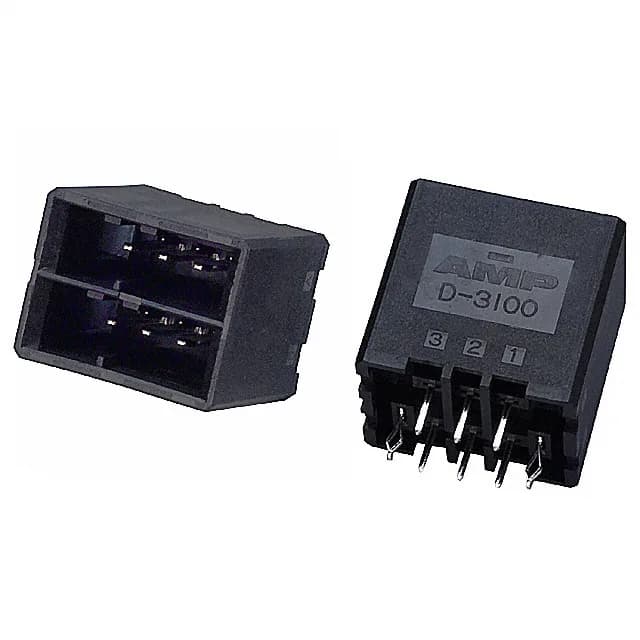

TE Connectivity AMP Connectors Dynamic D-3100 series, header, 6 positions, 2 rows, 3.81mm pitch, through-hole, shrouded - 4 wall, board lock, detent lock, tin-plated contacts, UL94 V-0, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 6 |
| Row spacing - mating | 0.300\" (7.62mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
This is a practical choice for equipment mounted on moving machinery or in transport applications. It holds against moderate vibration but is not rated for continuous high-shock environments.
The base product number is 178141, which covers the series variants. Confirm the exact order code for your BOM line.
The 1-178141-5 header mates with a Dynamic D-3100 receptacle housing that accepts the matching tab contacts. The mating half is a 6-position, 2-row receptacle with 3.81mm pitch. Confirm the exact receptacle order code from the Dynamic D-3100 series documentation.
Yes, the 1-178141-5 includes a board lock feature for through-hole retention during wave soldering and mechanical anchoring against vibration.
