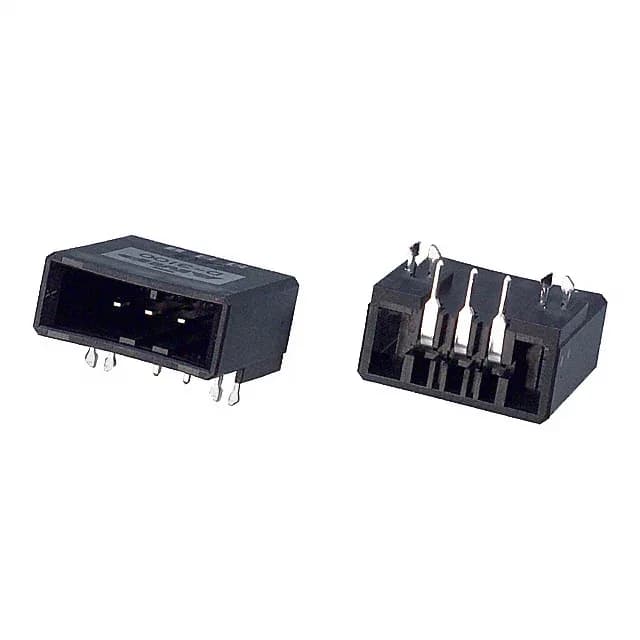

TE Connectivity AMP Connectors Dynamic D-3100 series header, 3 positions, single row, 0.150" (3.81mm) pitch, through-hole right-angle, tin-plated contacts, board lock, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 1-178293-5: The single-row layout with all positions loaded simplifies routing for a 3-wire interface — power, signal, and ground — without wasted board space.
The post finish is also tin, consistent with the solder termination.
The voltage rating is 250V, consistent with the Dynamic D-3100 series insulation spacing.
Yes, it is ROHS3 compliant.
The peer 1-1871673-2 is a right-angle through-hole header from the same Dynamic series, but with a 2.50mm pitch and 4 positions in dual rows — not a direct pin-for-pin replacement due to pitch and row count differences.
