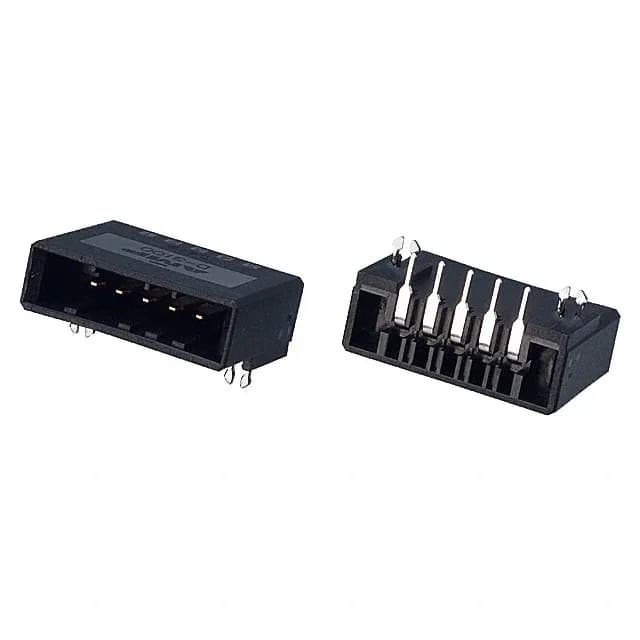

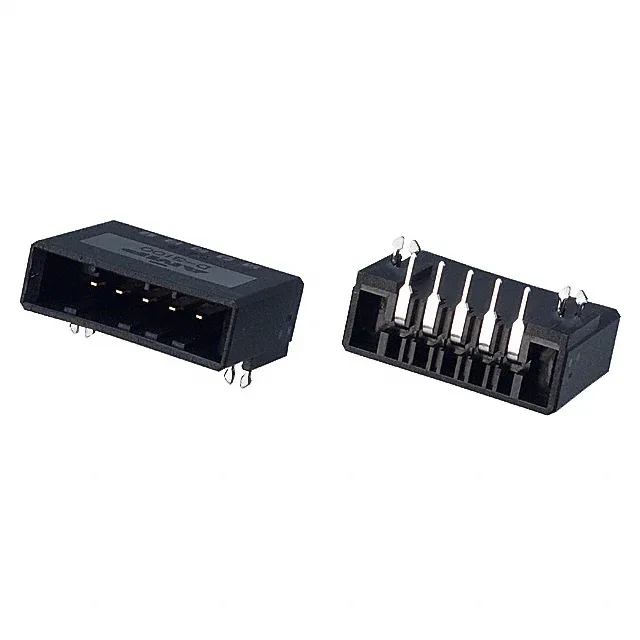

TE Connectivity AMP Connectors Dynamic D-3100 series, 1-178295-3, header, 5 positions, 3.81mm pitch, through-hole right-angle, shrouded 4-wall, board lock, gold mating finish, UL94 V-0, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-178295-3: This Dynamic D-3100 series header from TE Connectivity AMP Connectors is a single-row, 5-position, through-hole right-angle connector on a 3.81mm pitch. The 3.81mm spacing is wider than many board-to-board headers, giving you more room for trace routing and higher voltage clearance between adjacent circuits.
1-178295-3 is an active TE Connectivity AMP Connectors part. It is not stocked on a shelf here; we source it per RFQ against your BOM quantity. Submit a request for quote to get current pricing and lead time.
Yes, 1-178295-3 is ROHS3 Compliant per the manufacturer's listing.
The mating pitch is 0.150" (3.81mm). The post length is also 0.150" (3.81mm).
Yes, it is fully shrouded on four walls, which protects the contact tabs and prevents mis-mating with the receptacle.
