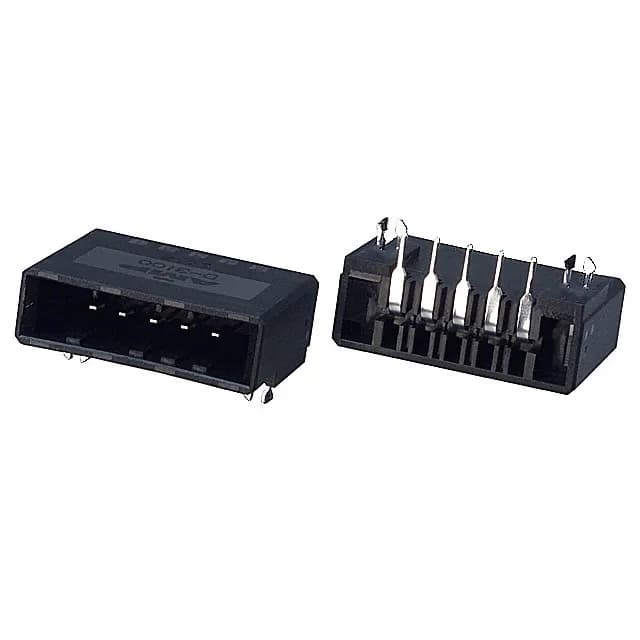

TE Connectivity AMP Connectors Dynamic D-3100 series header, 1-178295-5, 5 positions, 0.150" (3.81mm) pitch, single row, right-angle through-hole, shrouded 4-wall, tin-plated contacts, board lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 1-178295-5: This is a practical feature when the mated connector sees vibration or cable tug — the lock takes the strain off the solder joints.
The base product number is 178295, which covers the series family; the -5 suffix specifies the 5-position variant.
Yes, 1-178295-5 is a member of the Dynamic D-3100 series from TE Connectivity AMP Connectors. It is a 5-position, single-row, right-angle through-hole header with a 0.150" (3.81mm) pitch.
Yes, it is a shrouded header with 4-wall protection around the tab contacts, which guides the mating receptacle and prevents pin damage.
