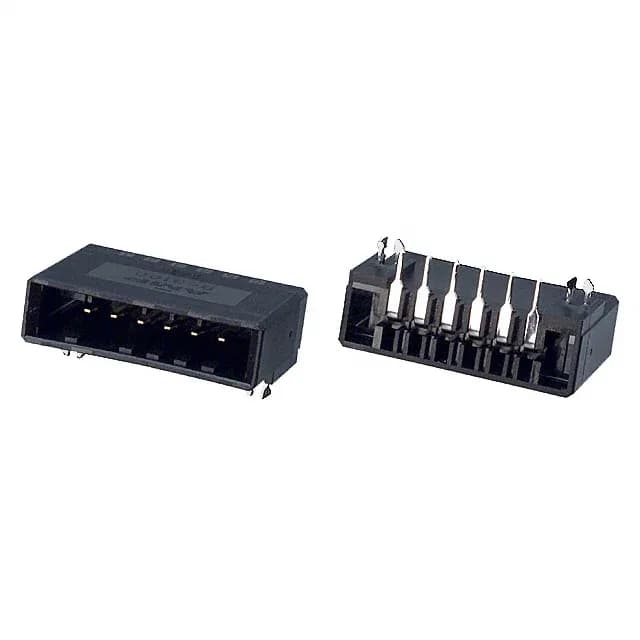

TE Connectivity AMP Connectors, Dynamic D-3100 series, 1-178296-2 header, 6 positions, 0.150" (3.81mm) pitch, right-angle through-hole, gold mating contacts, shrouded 4-wall, detent lock, board lock, UL94 V-0, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1-178296-2 is a 6-position, single-row header from TE's Dynamic D-3100 series, with a 0.150" (3.81mm) mating pitch that gives you more board space per circuit than a 2.54mm header—useful when routing higher-voltage or higher-current traces in industrial control panels.
No stock-holding claim—availability is confirmed per RFQ.
Submit an RFQ with your target quantity. We source this active-production part per order and confirm current pricing and lead time at quote time. No stock-holding claim—availability is verified per RFQ.
This header mates with a Dynamic D-3100 series receptacle that accepts the 0.150" (3.81mm) pitch, single-row tab contacts. The detent lock on the header engages with the receptacle's locking ramp. Confirm the receptacle part number against your wire gauge and circuit count.
The mating pitch is 0.150" (3.81mm), single row, 6 positions loaded.
