6-position shrouded header with detent lock
The 1-178296-3: Gold-plated mating contacts rated 250V, through-hole right-angle mounting with board lock retention, and a UL94 V-0 glass-filled polyester housing.

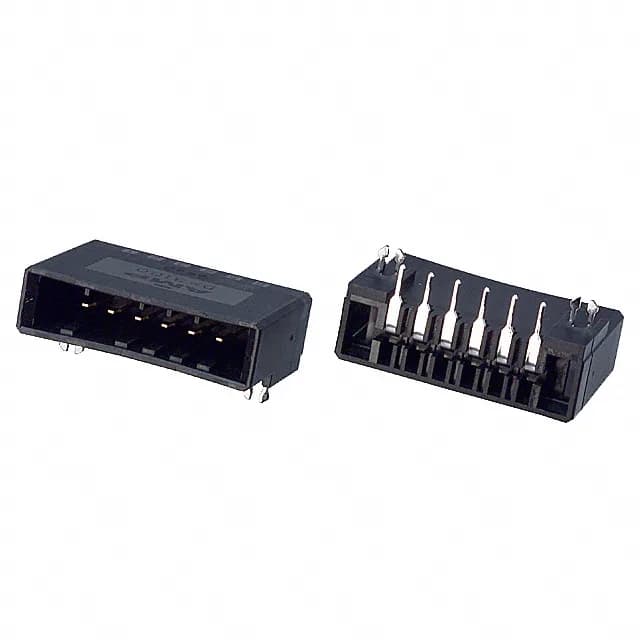

TE Dynamic D-3100 1-178296-3 Header, 6 Pos, 3.81mm
MPN1-178296-3
Active
TE Connectivity AMP Connectors Dynamic D-3100 header, order code 1-178296-3, 6 positions, single row, 0.150" (3.81mm) pitch, 250V, gold-plated mating contacts, through-hole right-angle, solder termination.
$2.4437Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 1-178296-3 in the Dynamic D-3100 series?
No pin-compatible alternative is listed in the Dynamic D-3100 series for the 1-178296-3. The 6-position count and 0.150" pitch are specific to this part within the series.
What compliance documentation does TE Connectivity provide for 1-178296-3?
RoHS and REACH compliance documentation is available from TE Connectivity upon request.
