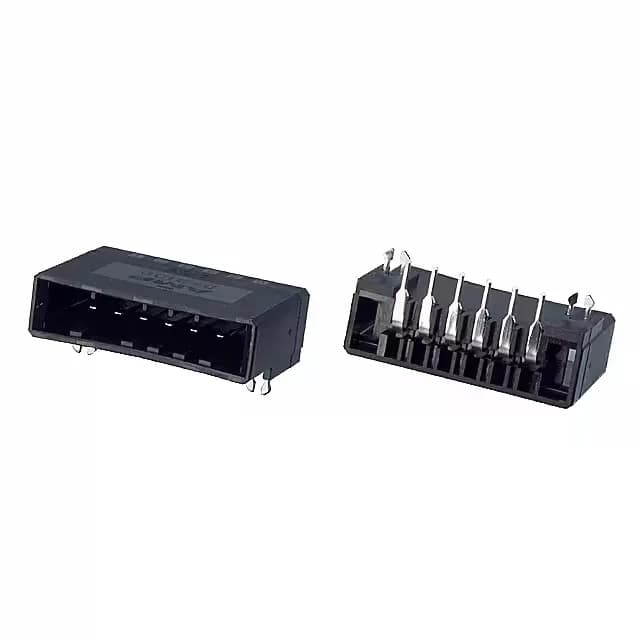

TE Connectivity AMP Connectors Dynamic D-3100 series, 1-178296-5: single-row right-angle header, 6 positions, 3.81mm pitch, through-hole solder termination, tin-plated contacts, shrouded 4-wall, board lock, UL94 V-0, -55°C~105°C.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 1-178296-5 is a single-row, 6-position header from TE's Dynamic D-3100 series. It mates with the corresponding D-3100 receptacle for board-to-board or wire-to-board applications.
Tin is cost-effective for applications that are mated infrequently and not exposed to corrosive atmospheres.
Submit an RFQ for current pricing and delivery.
This header mates with a Dynamic D-3100 series receptacle (e.g., 1-178128-5 or similar 6-position housing with crimp terminals). The 3.81mm pitch and single-row layout must match the receptacle's contact spacing and circuit count.
