TE Connectivity AMP Connectors Dynamic D-3100, Header, 8 Positions, 3.81mm Pitch, Through Hole, Right Angle, Gold Mating Finish, Detent Lock, Board Lock, UL94 V-0
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |

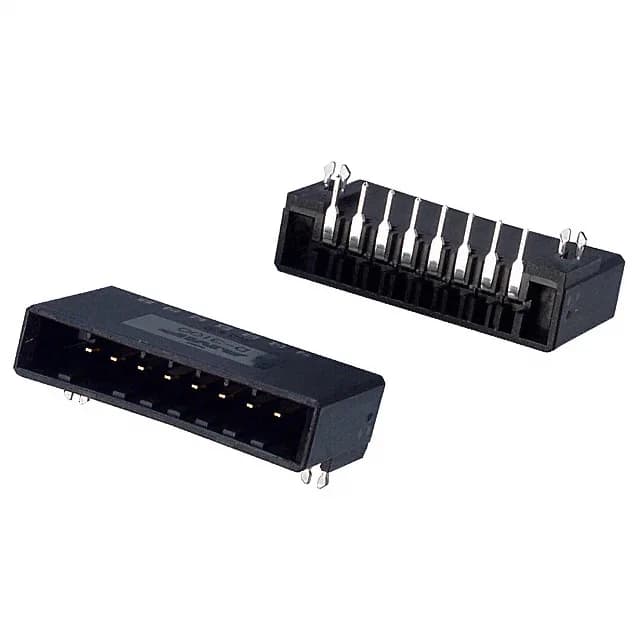

The 1-178297-2 is an 8-position single-row header from the Dynamic D-3100 series, on a 0.150-inch (3.81mm) pitch. It mounts through-hole with a right-angle orientation, so the mating axis runs parallel to the PCB — useful for board-edge or low-profile cable exits.
Submit an RFQ with your target quantity and delivery window. Current pricing and lead time are confirmed at quote time — we source this active part per your BOM line.
It is a single-row, 8-position header with all positions loaded. Pin 1 is typically marked on the shroud; the rectangular tab contacts are arranged in a straight row at 3.81mm pitch.
It mates with a Dynamic D-3100 series receptacle housing that accepts the corresponding crimp terminals. The detent lock on the header engages with the matching latch on the receptacle.
