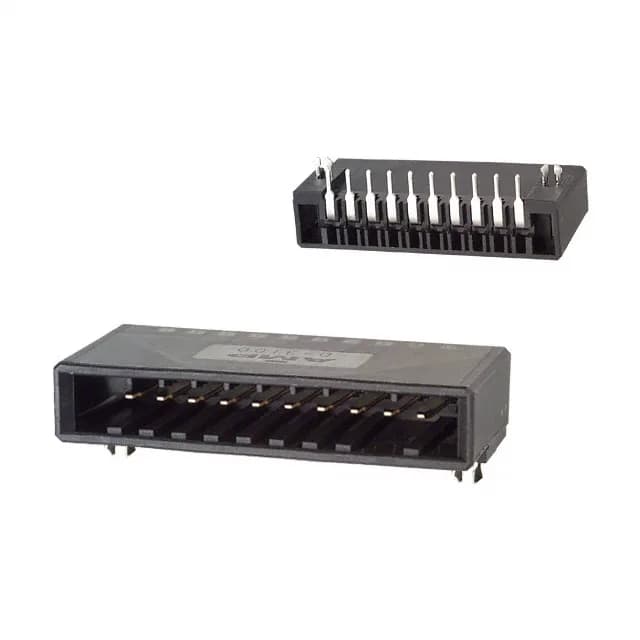

TE Connectivity AMP Connectors Dynamic D-3100 series, 1-178298-2, 10-position single-row header, 3.81mm pitch, right-angle through-hole, shrouded 4-wall, gold-plated mating contacts, board lock, UL94 V-0, active production.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1-178298-2 is a 10-position, single-row header from TE's Dynamic D-3100 series. The post finish is tin, compatible with standard solder processes. This suits general-purpose and industrial equipment inside enclosures where flame rating is required.
Solder termination is used for all 10 positions. The board lock provides mechanical retention during wave soldering and adds vibration resistance once mated.
The mating pitch is 0.150" (3.81mm), single-row, 10 positions loaded.
Yes, the header includes a board lock feature for secure PCB retention during soldering and service.
Through-hole, right-angle mounting. The header sits perpendicular to the board surface, suitable for edge-mount or low-profile applications.
