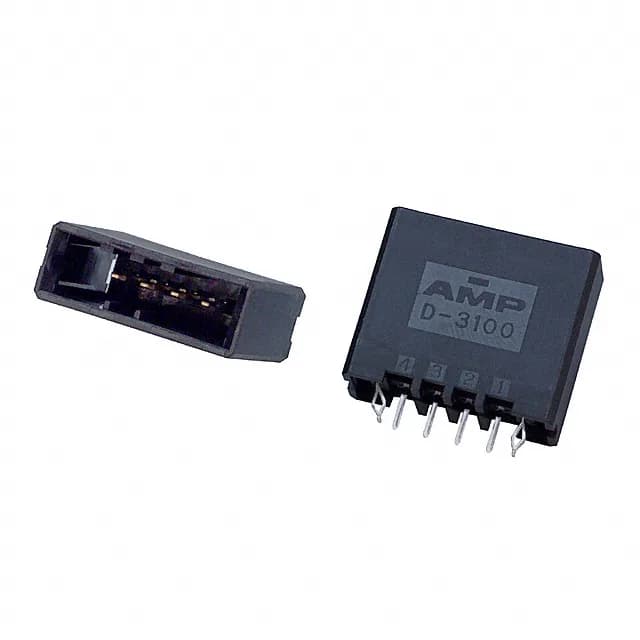

TE Connectivity AMP Connectors Dynamic D-3100 header, order code 1-178314-3, 4 positions, single row, 0.150" (3.81mm) pitch, 250 V, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-178314-3 is the 4-circuit member of TE's Dynamic D-3100 header line, a shrouded single-row board-to-board or cable style connector. It carries gold-plated mating contacts rated 250 V and mounts through-hole with solder termination; the 0.150" (3.81mm) pitch and board lock feature suit industrial and general-purpose equipment.
No pin-compatible alternative is documented for the 1-178314-3 in the Dynamic D-3100 series; the 4-position single-row configuration is unique within the series.
