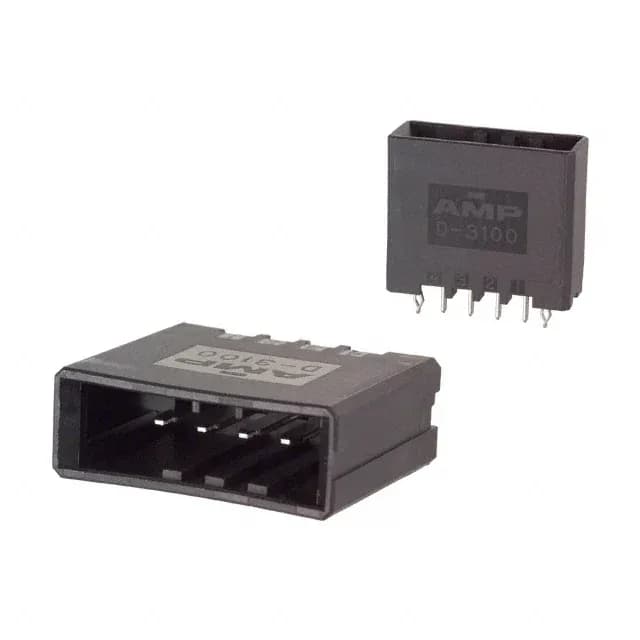

TE Connectivity Dynamic D-3100 series header, 1-178314-5, 4 positions, single row, 3.81mm pitch, shrouded 4-wall, through-hole solder, board lock, tin-plated contacts, UL94 V-0, -55°C to 105°C, bulk.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 1-178314-5 is a single-row, 4-position header from TE's Dynamic D-3100 series, on a 3.81mm pitch. It mates with Dynamic D-3100 receptacle housings that accept the matching crimp terminals — it's three parts, not one.
Yes, it includes a board lock for PCB retention. The operating temperature range is -55°C to 105°C.
