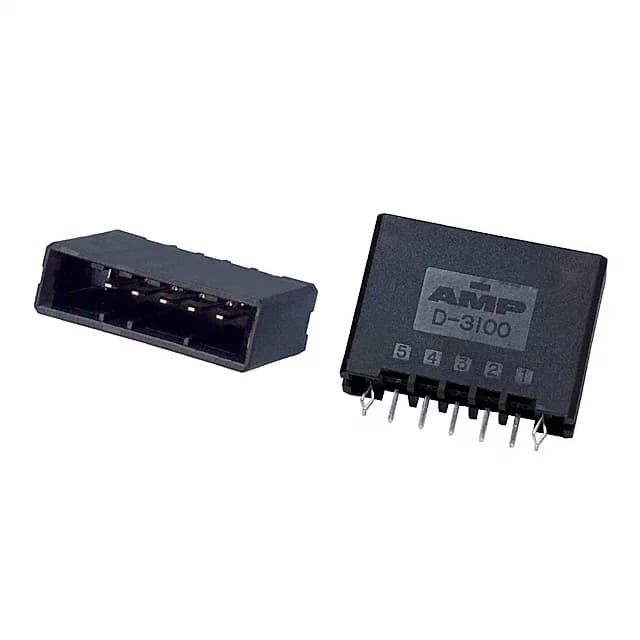

The 1-178315-5: Rated for board-to-board or cable-to-board applications, the header mates with Dynamic D-3100 series receptacles that accept 20-24 AWG wire. The detent lock provides audible feedback on full engagement and resists vibration-induced separation.
The tab-style rectangular contacts are copper alloy, rated for 250V. Current rating depends on wire gauge and ambient temperature; in the Dynamic D-3100 series, a single contact typically handles up to 10A with 16 AWG wire at 30°C rise, but derate above 85°C ambient.
Mechanical Retention and Environment
The through-hole termination with 0.150" (3.81mm) post length fits standard 1.6mm thick boards.
