TE Connectivity AMP Connectors, Dynamic D-3100 series, header, 6 positions, 3.81mm pitch, vertical through-hole, shrouded 4-wall, gold 30.0µin mating finish, board lock, UL94 V-0, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |

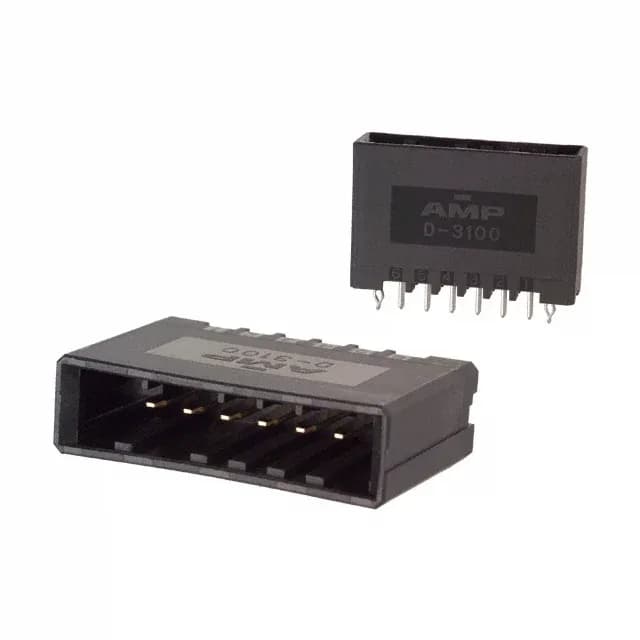

The 1-178316-3: This is a 6-position, single-row header from TE's Dynamic D-3100 series, on a 3.81mm pitch. It's a vertical through-hole part with a shrouded 4-wall design and a detent lock for secure mating. It's classed for general-purpose and industrial applications.
RoHS3 compliant. The board lock feature adds mechanical retention during wave solder, reducing the risk of tombstoning or skew.
This is a header from the Dynamic D-3100 series. It mates with the matching D-3100 receptacle housing and crimp terminals. Confirm the circuit count and contact style — the mating half must be a 6-position, single-row, tab-type receptacle.
