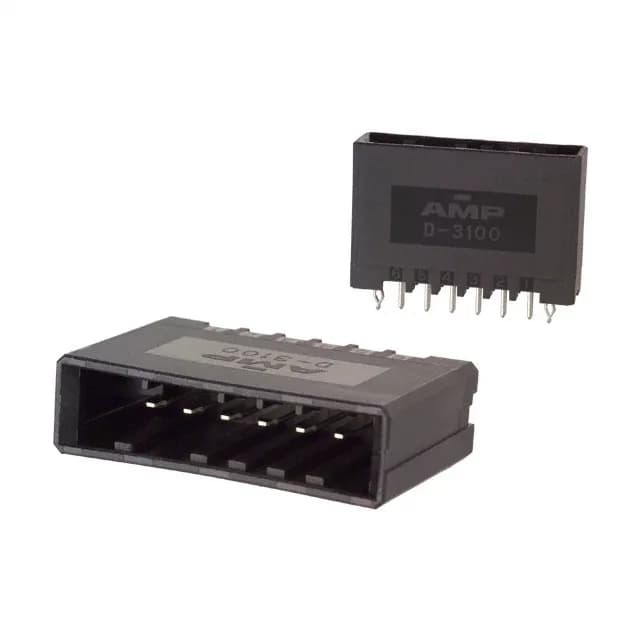

TE Dynamic D-3100 header, order code 1-178316-5, 6 positions, single row, 0.150" (3.81 mm) pitch, 250 V, tin-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 1-178316-5 is the 6-position member of TE's Dynamic D-3100 header line, a shrouded 4-wall design with a detent lock for positive retention. Rated 250 V with tin-plated mating contacts, it mounts through-hole with solder termination and includes a board lock for secure PCB attachment.
This is a tab-type header (rectangular contact shape) intended for board-to-board or cable applications — the mating receptacle is a Dynamic D-3100 series housing with matching detent lock.
