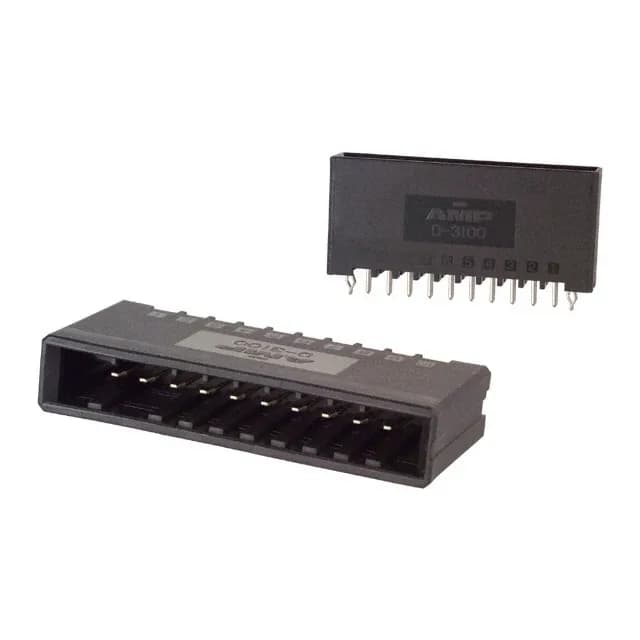

TE Connectivity AMP Connectors Dynamic D-3100 header, order code 1-178318-5, 10 positions, single row, 3.81 mm pitch, 250 V, tin-plated mating contacts, through-hole, solder termination, board lock, shrouded 4-wall.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 1-178318-5 is the 10-circuit member of TE's Dynamic D-3100 single-row header line, mates with the matching Dynamic D-3100 receptacle for board-to-board or cable duty. Tin-plated mating contacts rated 250 V, through-hole solder termination with a board lock for retention during wave soldering.
RoHS compliance is not explicitly stated in the record; confirm with the manufacturer for the specific date code.
No pin-compatible alternative is listed in the Dynamic D-3100 series from TE. The 1-178318-5 is the 10-position single-row member; other position counts in the series share the same pitch but differ in circuit count.
Yes, the 1-178318-5 includes a board lock for retention during soldering.
