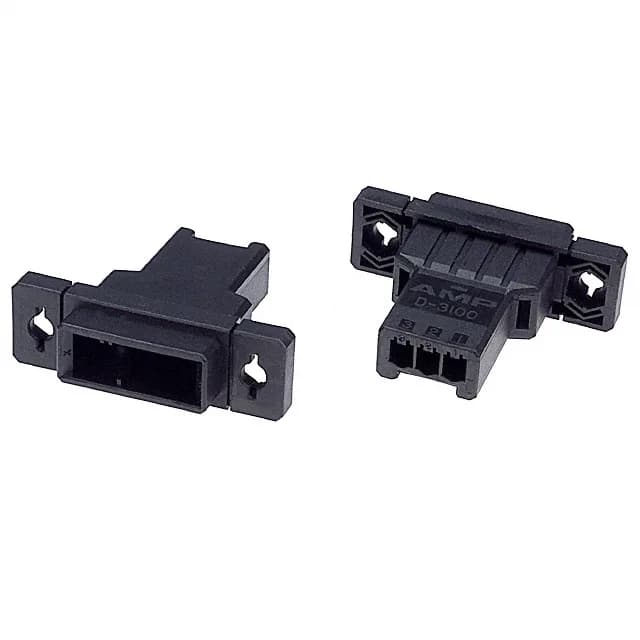

TE Connectivity Dynamic D-3100 series plug housing, 3 positions, 1 row, 0.150" (3.81mm) pitch, panel mount, crimp termination, black thermoplastic housing, polarizing key, -55°C to 105°C, ROHS3 compliant.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Male Pin |
| Mounting | Panel Mount |
| Connector type | Plug |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Features | Polarizing Key |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 3 |
The crimp termination allows field-assembled or production harness builds with the correct wire gauge for the current draw.
The panel-mount feature secures the housing to a chassis or enclosure wall, taking strain off the wire-to-wire connection.
The 1-178802-3 accepts male pin crimp terminals from the Dynamic D-3100 series. Contacts are not included with the housing and must be ordered separately. Select the terminal based on your wire gauge and current requirements.
