The 5.08 mm pitch is wider than the 2.50 mm pitch on the 1-1871673-2 sibling, which means more board real estate per circuit but also higher current capacity per contact — the wider spacing reduces thermal coupling between adjacent pins. For a 2-position, single-row, gold-contact requirement, the 1-179276-2 is the direct choice.

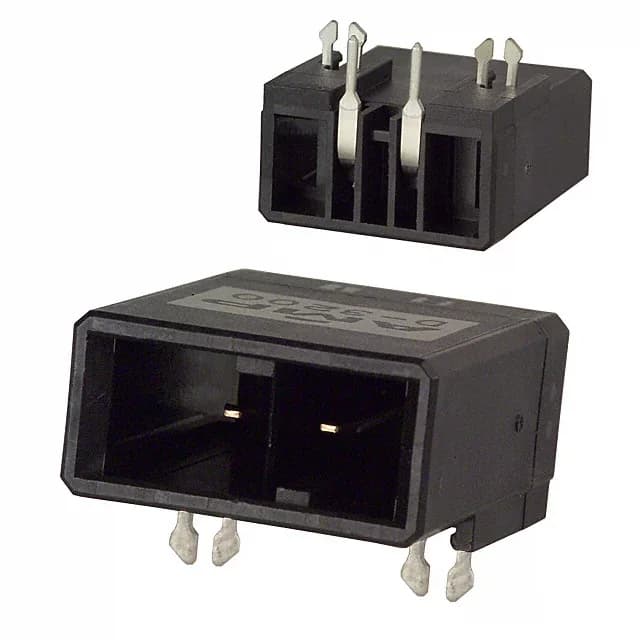

1-179276-2 TE Dynamic D-3200 Header 2 Pos 5.08mm Right Angle
MPN1-179276-2
Active
TE Connectivity AMP Connectors Dynamic D-3200 series, 1-179276-2, board-to-board or cable header, 2 positions, 5.08 mm pitch, right-angle through hole, gold mating finish, board lock, UL94 V-0.
$1.8400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDynamic D-3200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
Is 1-179276-2 RoHS compliant?
Yes, it is ROHS3 compliant.
