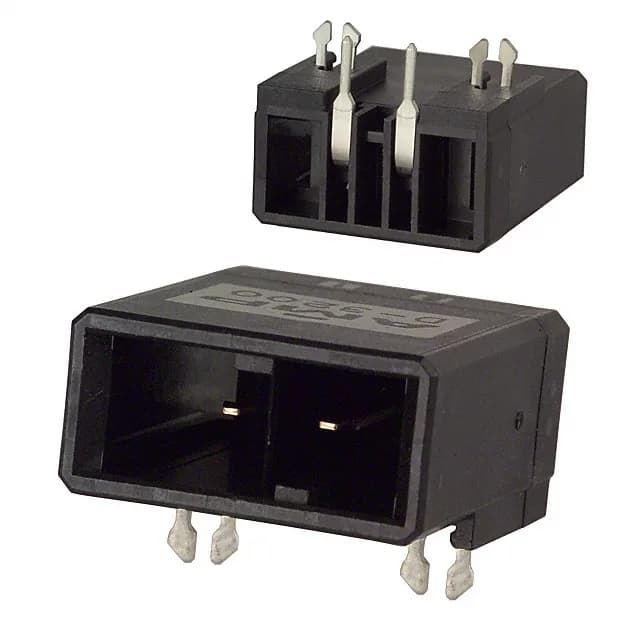

TE Connectivity AMP Connectors Dynamic D-3200 series header, 1-179276-3, right-angle through-hole, 2 positions, 5.08mm pitch, gold-plated mating contacts, detent lock, board lock, UL94 V-0, 600V rating.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Shrouded on all four walls, it protects the contacts from accidental shorting during handling.
The board lock adds mechanical retention during wave soldering and resists shear forces from cable pull. Insulation height is 0.368" (9.35mm), and the post length is 0.150" (3.81mm) — check your board thickness and component keep-out zones.
This header is designed to mate with Dynamic D-3200 series receptacles. The detent lock requires a matching housing with the complementary latch feature. Confirm the mating part number with your assembly drawing.
