The 1-179276-5: Rated 600V, the header suits industrial power distribution inside a panel — think 480VAC line-level feeds or high-voltage DC bus bars. The tin mating finish is cost-effective for low-cycle applications; expect fewer than 50 mating cycles before contact wear becomes visible. The detent lock provides a tactile snap that resists un-mating under moderate vibration — enough for a stationary cabinet, not for an engine mount.

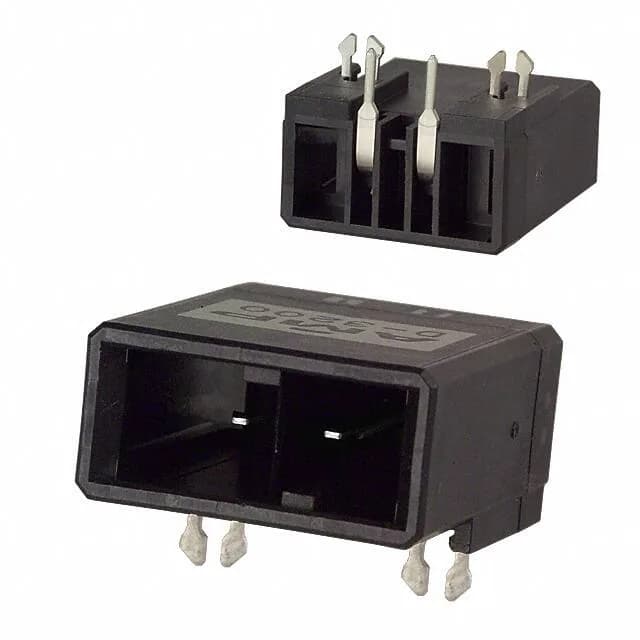

1-179276-5 TE Dynamic D-3200 Header 2 Pos 5.08mm Right Angle
MPN1-179276-5
Active
TE Connectivity AMP Connectors Dynamic D-3200 series, 1-179276-5, board-to-board or cable header, 2 positions, 5.08mm pitch, right-angle through-hole, shrouded 4-wall, tin mating finish, board lock, UL94 V-0, -55°C to 105°C.
$2.3500Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDynamic D-3200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
Product details
Frequently asked questions
What is the mating connector for 1-179276-5?
The mating half is a Dynamic D-3200 series receptacle housing that accepts the matching crimp tab terminals. The exact receptacle part number depends on your wire gauge and circuit count — confirm against the series catalog before ordering.
