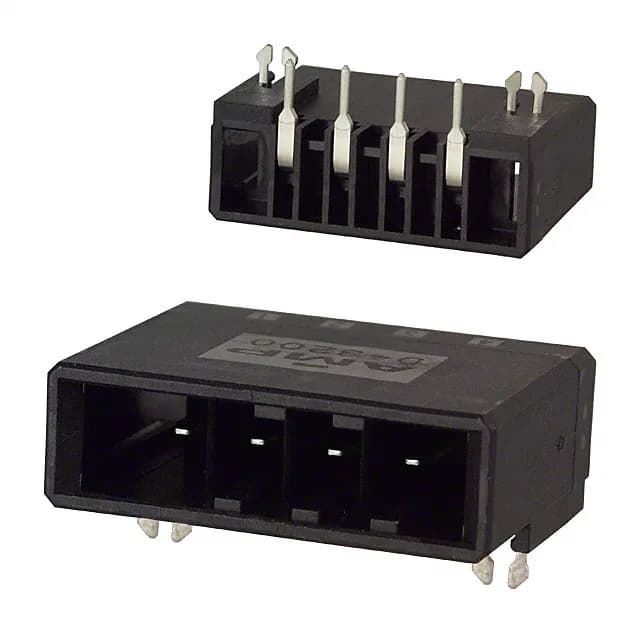

TE Connectivity AMP Connectors Dynamic D-3200 series, 1-179277-5, Board to Board or Cable header, 4 positions, 5.08mm pitch, right-angle through-hole, shrouded - 4 wall, detent lock, board lock, tin contacts, UL94 V-0, -55°C ~ 105°C.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 1-179277-5 is a 4-position, single-row header from TE's Dynamic D-3200 series, pitched at 5.08 mm.
Rated at 600 V, this header suits power distribution within industrial control cabinets and machinery.
Yes, it has a detent lock that provides positive retention against vibration-induced disconnect.
Yes, it is RoHS compliant.
