TE Connectivity AMP Connectors 1-179958-2 — Connector Housings

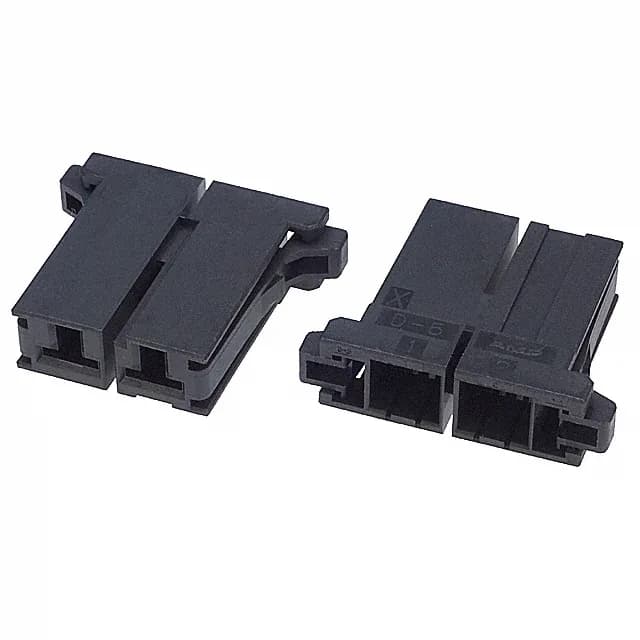

TE Dynamic D-5200 1-179958-2 Receptacle Housing, 2 Pos

MPN1-179958-2
Active

TE Connectivity Dynamic D-5200 series receptacle housing, 1-179958-2, 2 positions, single row, 0.400" (10.16mm) pitch, black thermoplastic, free-hanging, crimp termination, polarizing key, contacts not included.

$1.7600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-179958-2 datasheet (PDF)
RoHSRoHS Compliant
SeriesDynamic D-5200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-179958-2 specifications
ParameterValue
SeriesDynamic D-5200
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.400\" (10.16mm)
PackageBulk
FeaturesPolarizing Key
Rows1
Contact terminationCrimp
Positions2

Product details

Housing Only — Order the Terminals Separately

This is the 2-position, single-row receptacle housing from TE's Dynamic D-5200 series, order code 1-179958-2. The 10.16 mm pitch is the widest in the D-5200 family, giving each circuit generous clearance for high-current power wiring. A polarizing key on the housing ensures the mating plug can only be inserted one way — a basic but essential safeguard when the circuit carries bus-level current. The critical thing to know: contacts are not included. The housing alone is just the shell.

Frequently asked questions

Where can I buy 1-179958-2 and get a price?

We source the 1-179958-2 through independent distribution and quote it to order against your BOM quantity. Submit an RFQ with your target quantity and we will confirm availability and current pricing.

Does 1-179958-2 include contacts?

No. The listing explicitly states 'Contacts Not Included'. You must order the female socket crimp terminals separately to populate this housing. The housing is just the shell.

What is the pitch of 1-179958-2?

The pitch is 0.400" (10.16 mm) — the widest in the Dynamic D-5200 series, giving each circuit substantial clearance for heavy-gauge power wiring.

Is 1-179958-2 a female or male housing?

It is a receptacle housing that accepts female socket contacts. It mates with a plug housing carrying male tab contacts.
