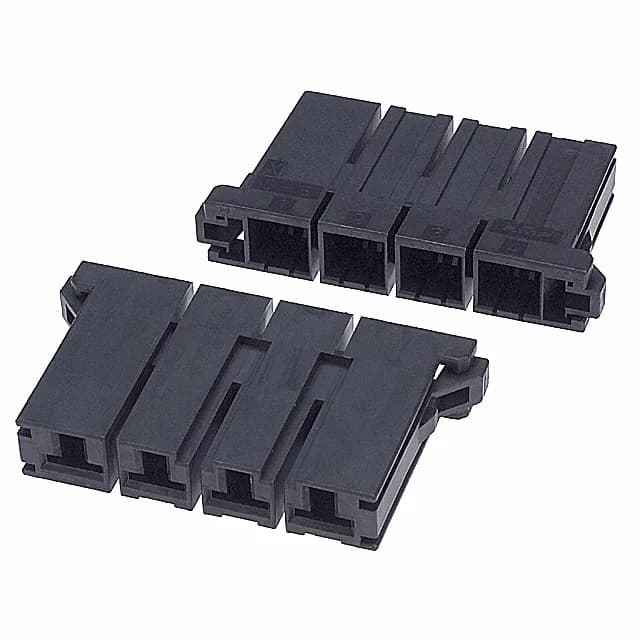

It carries a 10.16 mm pitch — wide enough for 600 V class creepage without forcing an oversized footprint. A polarizing key prevents flipping the connector in the mating plug. Black thermoplastic, glass-filled polyester insulation, rated -55°C to 105°C.
Contacts Not Included — What That Means for the BOM
The listing note states contacts are not included. You order the housing and the crimp terminals separately — the Dynamic D-5200 series uses a female socket contact (crimp termination) that must be sourced as a distinct line item. For a 4-position harness, that means four terminals plus the housing. Confirm the wire gauge range and plating grade (tin vs gold) on the terminal spec before committing the BOM.
Mating Plug and Terminal Compatibility
The 10.16 mm pitch and single-row layout are fixed — the plug must share the same pitch and row count. The polarizing key on the housing aligns with a keyway on the plug, so a 180° reversed mate is physically blocked. No specific plug order code is listed here, but the series is consistent: look for a Dynamic D-5200 plug with the same circuit count.
Active lifecycle — no phase-out on record. No official cross-reference or second-source listed.
