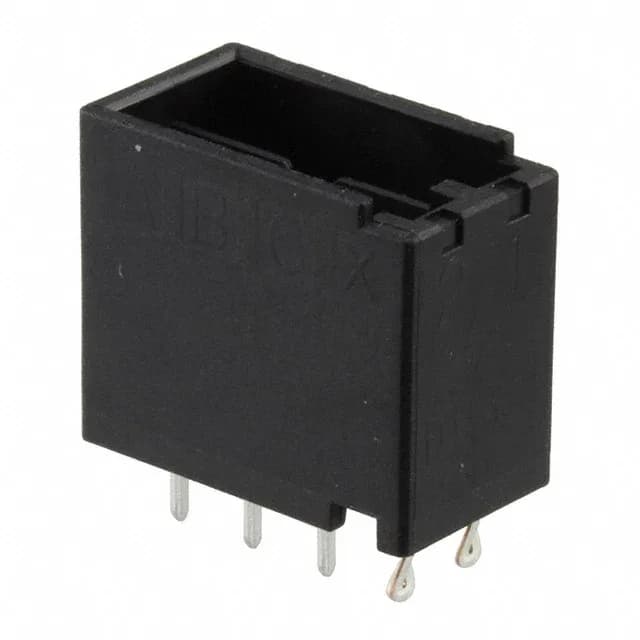

TE Connectivity AMP Connectors Dynamic D-1500 series, 1-1827581-2, Board to Board or Cable header, 6 circuits, 3.50mm pitch, 3 rows, through-hole, shrouded 4-wall, gold mating contacts, board lock, UL94 V-0, active.
| Parameter | Value |
|---|---|
| Series | Dynamic D-1500 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 5A |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.490\" (12.44mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 3 |
| Pitch | 0.138\" (3.50mm) |
| Positions | 6 |
| Row spacing - mating | 0.130\" (3.30mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1-1827581-2: It is ROHS3 compliant.
Mates with Dynamic D-1500 series socket housings (crimp or IDC receptacles) that accept the matching tab contacts. The detent lock provides audible feedback on full mate — a half-turn loose is a dropout, so listen for the click. Termination is solder to through-hole posts (0.120" length). The 3-row layout with 3.30mm row spacing gives the board layout engineer room to route traces between rows without necking down the copper.
It mates with Dynamic D-1500 series socket housings that accept tab contacts. The detent lock secures the pair; the 4-wall shroud guides alignment during mating.
The peer part 1-1871673-2 is a 4-position, 2-row header with 2.50mm pitch and tin contacts. It is not a pin-compatible replacement — the circuit count, pitch, and plating differ. A board layout change is required.
