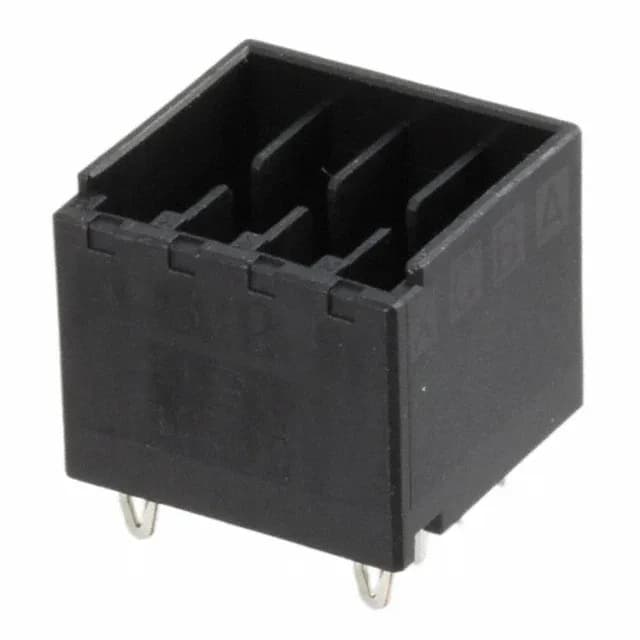

1-1827581-4 TE Dynamic D-1500 Header 12 Pos 3.5mm

MPN1-1827581-4
Active

TE Connectivity AMP Connectors Dynamic D-1500 series, Header, 12 Positions, 3.50mm Pitch, 3 Rows, Through Hole, Solder, Shrouded - 4 Wall, Board Lock, Detent Lock, Gold Mating Contact, 5A, 250V, -55°C ~ 105°C, UL94 V-0.

$5.0600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1827581-4 datasheet (PDF)
RoHSROHS3 Compliant
SeriesDynamic D-1500
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-1827581-4 key specifications
ParameterValue
SeriesDynamic D-1500
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Voltage rating250V
Current rating5A
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.490\" (12.44mm)
Insulation materialThermoplastic, Polyester, Glass Filled

All specifications

1-1827581-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTube
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows3
Pitch0.138\" (3.50mm)
Positions12
Row spacing - mating0.130\" (3.30mm)
Contact finish - postTin
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

3-row 12-position header for board-to-board or cable duty

The 1-1827581-4: This is a 12-position, 3-row vertical header from TE's Dynamic D-1500 series, on a 3.50 mm mating pitch with 3.30 mm row spacing. The 4-wall shrouding and detent lock protect the contacts during mating and resist vibration-induced disconnect — a practical choice for panel wiring or board-to-board links where the cable gets handled.

Board lock and gold mating surface for reliable termination

The board lock feature holds the header in place during wave solder, preventing float and keeping the post alignment consistent across the PCB footprint. The solder tails are tin-plated at 78.7 µin for a reliable solder joint.

Frequently asked questions

What is the pinout of 1-1827581-4?

The header has 12 positions, all loaded, arranged in 3 rows. The pinout follows the Dynamic D-1500 standard: row spacing is 0.130" (3.30 mm), and the mating interface is keyed by the 4-wall shroud. Refer to the TE product drawing for the exact pin numbering sequence.

Is 1-1827581-4 RoHS compliant?

Yes, it is ROHS3 Compliant per the manufacturer's status.
