TE Connectivity AMP Connectors 1-188275-0 — Female Socket Headers

1-188275-0 TE Connectivity Micro-MaTch 10-Position

MPN1-188275-0
Active

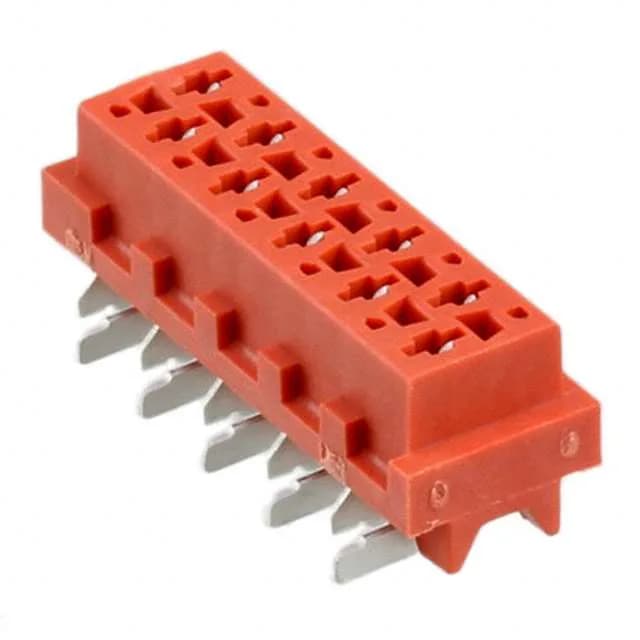

TE Connectivity AMP Connectors Micro-MaTch receptacle, 10 positions, 2 rows, 0.100" (2.54 mm) pitch, tin-on-tin contacts, SMT, -40°C to 105°C, UL94 V-0, red insulation.

$1.3318Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-188275-0 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-MaTch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-188275-0 key specifications
ParameterValue
SeriesMicro-MaTch
TypeForked
MountingSurface Mount
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating100VDC
Operating temperature-40°C~105°C
Contact materialPhosphor Bronze
Insulation colorRed
Insulation height0.209\" (5.30mm)
Insulation materialPolyamide (PA46), Nylon 4/6, Glass Filled
Material flammability ratingUL94 V-0

All specifications

1-188275-0 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTape & Reel (TR); Cut Tape (CT)
TerminationSolder
ApplicationsAutomotive, General Purpose
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingTin

Product details

0.100" Pitch, 10-Position Board-to-Board or Cable Receptacle

The 1-188275-0: The forked contact style mates with matching pin headers, and the push-pull fastening provides a secure but tool-less connection.

Tin contacts are rated for approximately 50-100 mating cycles; beyond that, the tin oxide layer builds up and contact resistance drifts. The 100 VDC voltage rating and the 2-row, 0.100" row spacing match standard ribbon-cable and header footprints. The SMT termination suits reflow assembly; the red insulation colour aids visual identification on the board.

It is ROHS3 compliant.

Frequently asked questions

What is the equivalent or substitute for 1-188275-0?

The 1-2823056-2 has a black housing and brass contacts versus the 1-188275-0's phosphor bronze. For higher mating-cycle life, consider the 1376775-2 (5 positions, gold-plated contacts).
