TE Connectivity AMP Connectors 1-188275-6 — Female Socket Headers

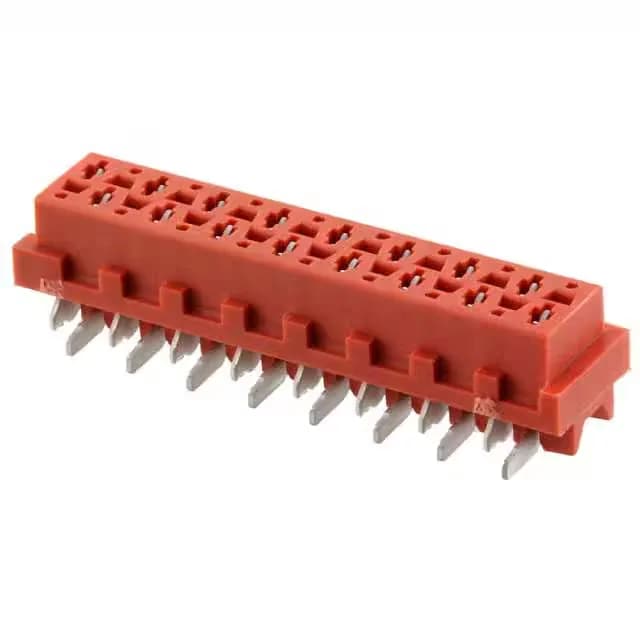

1-188275-6 TE Connectivity Micro-MaTch 16-Pin Receptacle

MPN1-188275-6
Active

TE Connectivity AMP Connectors Micro-MaTch, 16-position dual-row receptacle, 2.54mm pitch, tin-plated forked contacts, SMT termination, -40°C to 105°C, UL94 V-0, red insulation.

$1.9194Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-188275-6 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-MaTch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-188275-6 key specifications
ParameterValue
SeriesMicro-MaTch
TypeForked
MountingSurface Mount
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating100VDC
Operating temperature-40°C~105°C
Contact materialPhosphor Bronze
Insulation colorRed
Insulation height0.209\" (5.30mm)
Insulation materialPolyamide (PA46), Nylon 4/6, Glass Filled
Material flammability ratingUL94 V-0

All specifications

1-188275-6 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTape & Reel (TR); Cut Tape (CT)
TerminationSolder
ApplicationsAutomotive, General Purpose
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingTin

Product details

16-Pin Dual-Row Receptacle at 2.54mm Pitch

The 1-188275-6: Forked contact geometry with tin-on-tin plating — the mating and post finishes are both tin. The UL94 V-0 glass-filled PA46 housing holds its dimensional stability through reflow soldering.

SMT Termination and Board-Level Fit

Surface-mount termination with a 0.209-inch (5.30mm) insulation height above the board. The red polyamide housing provides visual contrast for automated optical inspection after reflow. Tape-and-reel packaging (cut tape also available) supports pick-and-place assembly.

ROHS3 compliant.

Frequently asked questions

What header mates with 1-188275-6?

Any 2.54mm pitch, 16-position, dual-row pin header with a push-pull retention feature will mate. TE's Micro-MaTch series includes matching pin headers (e.g., base part number 188276) — confirm the pin length and orientation for your board stack height.

Is 1-188275-6 RoHS compliant?

Yes, it is ROHS3 compliant.

Where can I buy 1-188275-6?

Available through independent distribution.
