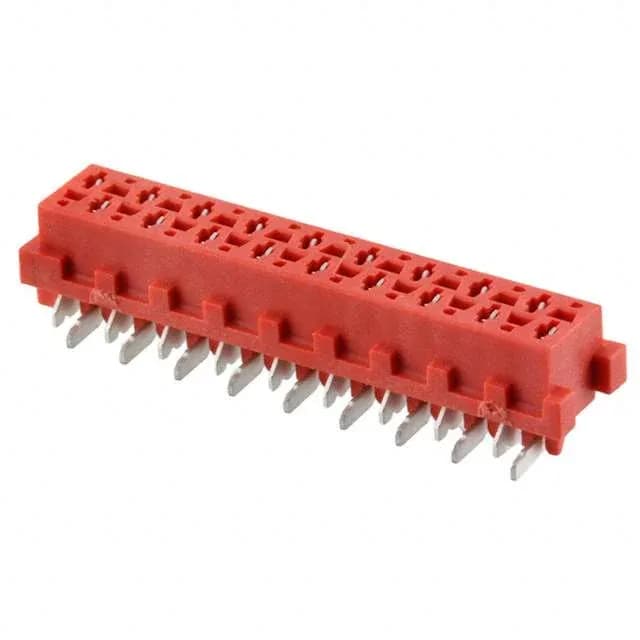

TE Connectivity AMP Connectors Micro-MaTch series, 1-188275-8, 18-position dual-row receptacle, 0.100" (2.54 mm) pitch, tin-plated forked contacts, SMT solder termination, push-pull fastening, UL94 V-0 red PA46 housing, -40°C to 105°C operating range.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.209\" (5.30mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 18 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The 1-188275-8 is an 18-position dual-row receptacle from TE's Micro-MaTch series, designed for board-to-board or cable connections.
The tin-on-tin contact interface is rated for moderate mating cycles — if your application sees frequent disconnect or corrosive environments, consider a gold-plated sibling in the Micro-MaTch family.
The pinout is a standard dual-row arrangement: 18 positions, all loaded, with 0.100" row spacing. The forked contacts mate with matching 0.100" pitch pin headers.
Yes, it is RoHS3 compliant.
