TE Connectivity AMP Connectors 1-1903130-6 — Connector Housings

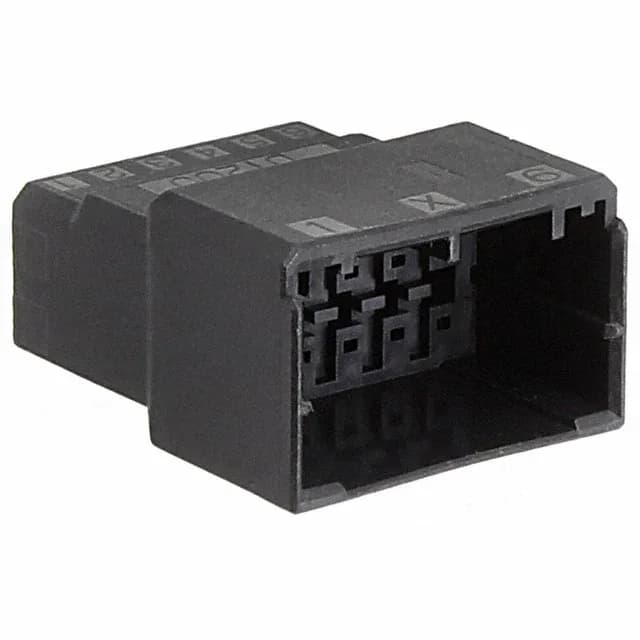

TE Dynamic D-1200 1-1903130-6 Plug Housing, 12 Pos, 2.50mm

MPN1-1903130-6
Active

TE Connectivity Dynamic D-1200 series, 1-1903130-6, plug housing, 12 positions, 2 rows, 2.50mm pitch, 3.30mm row spacing, crimp termination, free-hanging, black, bulk.

$1.0400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1903130-6 datasheet (PDF)
RoHSROHS3 Compliant
SeriesDynamic D-1200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-1903130-6 specifications
ParameterValue
SeriesDynamic D-1200
TypeTab
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typePush-Pull
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.098\" (2.50mm)
PackageBulk
Row spacing0.130\" (3.30mm)
Rows2
Contact terminationCrimp
Positions12

Product details

Plug Housing for a 12-Circuit Wire Harness

The TE Connectivity 1-1903130-6 is a Dynamic D-1200 series plug housing that holds 12 circuits in a dual-row arrangement at 2.50 mm pitch. The 3.30 mm row spacing gives enough room between rows for the terminal body and wire insulation without crowding the cavity wall. This housing is built for harness assembly where the connector floats in the cable bundle rather than being fixed to a panel or PCB.

The housing accepts tab-type contacts (male terminals) that are crimped onto wire.

Material and Operating Range

The black color is standard for the Dynamic D-1200 series and helps with visual identification on the assembly line. The housing is rated ROHS3 compliant, covering the full RoHS exemption set for industrial equipment.

Frequently asked questions

What is the mating header for 1-1903130-6?

The 1-1903130-6 mates with a Dynamic D-1200 series pin header that has the same 2.50 mm pitch, 2-row configuration, and 12 positions. The mating half is a through-hole or right-angle header with tab contacts that insert into this plug housing. The push-pull fastening type means the housing locks directly to the header without screws or latches.

Is 1-1903130-6 RoHS compliant?

Yes, the 1-1903130-6 is ROHS3 compliant, meeting the full RoHS exemption set for industrial electronic equipment.
