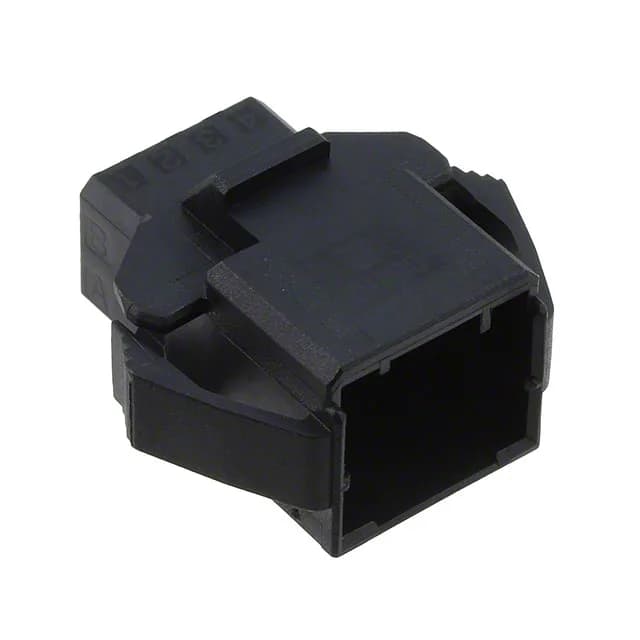

Panel-Mount Plug Housing for the Dynamic D-1200 Line
This is a wire-to-wire or wire-to-board interconnect housing — contacts are ordered separately.
What Contacts Fit Into 1-1903131-4?
This housing accepts Dynamic D-1200 series tab-type crimp contacts. The crimp termination suits 20-24 AWG wire, and the tab contact design mates with a receptacle socket in the matching housing.
What Is the Mating Receptacle Housing?
The mating half is a Dynamic D-1200 series receptacle housing with 8 positions at the same 2.50mm pitch. The receptacle accepts female socket contacts and locks with the plug's integral latch. The panel cutout for the snap-in mount follows the Dynamic D-1200 standard footprint — confirm the panel thickness against the housing retention features before cutting.
