TE Connectivity AMP Connectors 1-1926721-6 — Specialty Circular

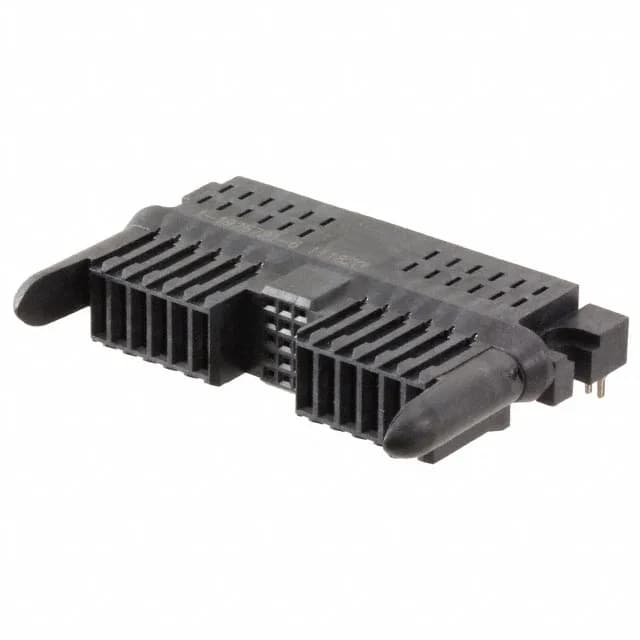

TE MINIPAK HDL 1-1926721-6 Receptacle, 27 Pos, 2.00mm

MPN1-1926721-6
Active

TE Connectivity MINIPAK HDL receptacle, 27 positions (15 signal, 12 power), 2.00mm pitch, press-fit, right-angle board edge mount, gold or gold-palladium contacts, UL94 V-0.

$9.7200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMINIPAK HDL
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-1926721-6 specifications
ParameterValue
SeriesMINIPAK HDL
MountingBoard Edge, Through Hole, Right Angle
Connector typeReceptacle, Female Sockets and Blade Sockets
Voltage rating250V
Operating temperature-40°C ~ 125°C
ColorBlack
Material flammability ratingUL94 V-0
Pitch0.079\" (2.00mm)
PackageTray
FeaturesBoard Lock, Guide Pin
TerminationPress-Fit
Contact finishGold or Gold-Palladium
Rows1
Positions27
Contact layout, typical15 Signal, 12 Power
Contact finish thickness30.0µin (0.76µm)

Product details

Hybrid Power/Signal Receptacle for Board-Edge Press-Fit Assembly

What the Contact Layout Means for Your BOM

This isn't a 27-position uniform array — you're allocating 12 positions for the DC rail or high-current lines and 15 for low-current signal paths. The receptacle uses both female sockets and blade sockets, with the blade contacts handling the power side.

Press-Fit and Board Lock — No Solder, No Drift

Press-fit termination means the compliant pin cold-welds into the plated through-hole — no solder joint to crack under vibration, and no reflow profile to manage.

Frequently asked questions

Where can I buy the 1-1926721-6 and what is the lead time?

The 1-1926721-6 is sourced to order against an RFQ through our independent distribution network. Availability and current pricing are confirmed at quote time — submit an RFQ for your BOM quantity and we'll provide a firm quote with lead time.

What is the pinout for the 1-1926721-6?

The 1-1926721-6 has a contact layout of 15 signal and 12 power positions, all loaded. The receptacle uses female sockets for signal and blade sockets for power. The exact pin assignment is defined in the product drawing — the 2.00 mm pitch and single-row arrangement make the position numbering straightforward.
