TE Connectivity AMP Connectors 1-1969540-0 — Connector Housings

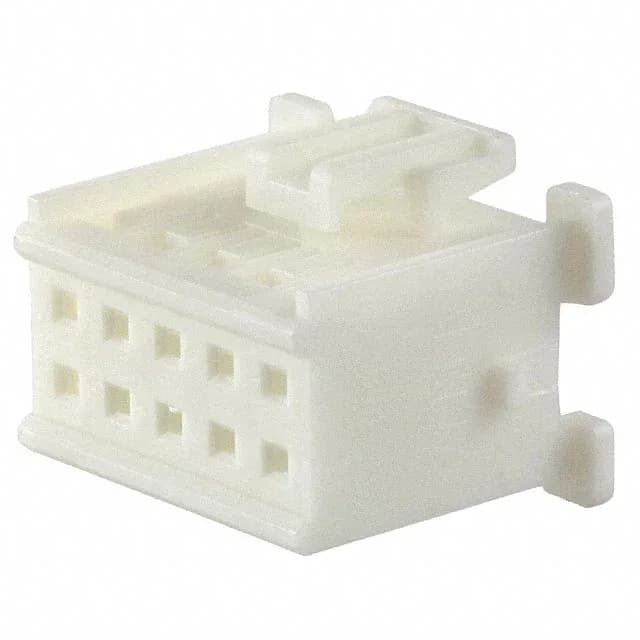

TE 1-1969540-0 Economy Power 2.5 Receptacle Housing, 10 Pos

MPN1-1969540-0
Active

TE Connectivity Economy Power 2.5 series, Receptacle Housing, 10 Positions, 2.50mm Pitch, 2 Row, Female Socket, Crimp Termination, Free Hanging, Latch Lock, White, Contacts Not Included.

$0.3300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEconomy Power 2.5
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-1969540-0 specifications
ParameterValue
SeriesEconomy Power 2.5
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-55°C ~ 105°C
ColorWhite
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.098\" (2.50mm)
PackageBulk
Row spacing0.098\" (2.50mm)
Rows2
Contact terminationCrimp
Positions10

Product details

Economy Power 2.5 Receptacle Housing — 10-Position, Dual-Row

It's a free-hanging (in-line) female socket housing designed for crimp termination — you supply the contacts separately. The 0.098" (2.50 mm) pitch on both rows gives you a compact, two-row layout that keeps the board footprint tight for a 10-circuit wire-to-board interconnect.

You'll need to order the correct female crimp terminals from the Economy Power 2.5 family separately. The housing accepts the standard EP 2.5 crimp socket, which you terminate onto your wire before inserting into the cavity. Factor that into your BOM so you're not waiting on a second shipment of contacts to finish the harness.

Mating Header and Fit

This receptacle mates with the corresponding Economy Power 2.5 pin header — look for the same 0.098" (2.50 mm) pitch and dual-row layout.

Frequently asked questions

What is the mating header for 1-1969540-0?

The mating header is a TE Economy Power 2.5 pin header with the same 0.098" (2.50 mm) pitch and dual-row configuration. The latch lock on this housing engages with the header's locking ramp.

Is 1-1969540-0 RoHS compliant?

Yes, the 1-1969540-0 is ROHS3 Compliant.

Where to buy 1-1969540-0?

This part is sourced to order. Contact our sales team for current pricing and lead time at quote.
