TE Connectivity AMP Connectors 1-1971773-4 — Connector Housings

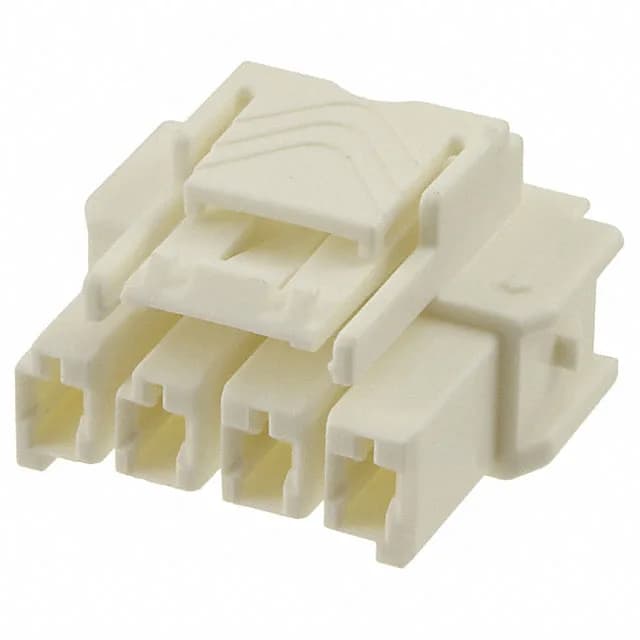

TE 1-1971773-4 Power Triple Lock Plug Housing, 4 Pos 6 mm

MPN1-1971773-4
Active

TE Connectivity Power Triple Lock, Standard, plug housing, 4 positions, 1 row, 6.00 mm pitch, free hanging, crimp termination, latch holder, natural PBT, -55°C to 105°C, contacts not included.

$0.5300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPower Triple Lock, Standard
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-1971773-4 specifications
ParameterValue
SeriesPower Triple Lock, Standard
TypeFemale Blade Socket
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Holder
Operating temperature-55°C ~ 105°C
ColorNatural
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.236\" (6.00mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions4

Product details

Power Triple Lock Plug Housing for 4-Circuit Harnesses

The 1-1971773-4: It uses a 6.00 mm pitch between cavities, which gives the wire harness enough spacing for 14–18 AWG power-grade terminals without crowding the connector face. A latch holder on the mating face locks the plug to the receptacle, so the pair stays mated under vibration in a harness run.

It accepts female blade socket crimp terminals from the Power Triple Lock terminal family. For a complete mated pair you also need the matching receptacle housing and the male tab terminals on the other side of the connection.

Frequently asked questions

What contacts fit the 1-1971773-4?

The 1-1971773-4 accepts female blade socket crimp terminals from the Power Triple Lock terminal family. Contacts are not included with the housing and must be ordered separately.

What is the mating receptacle for the 1-1971773-4?

The 1-1971773-4 mates with a Power Triple Lock receptacle housing of the same 6.00 mm pitch and 4-circuit count. The latch holder on the plug engages the matching lock feature on the receptacle side.
