5-position plug housing for the Power Triple Lock family

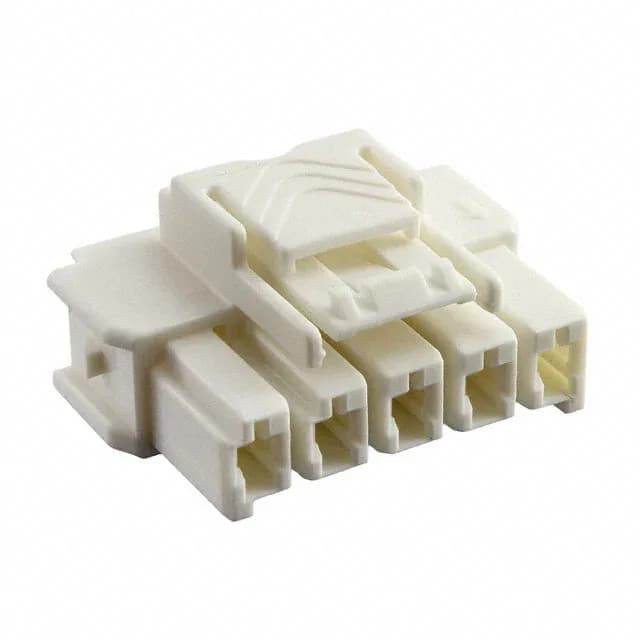

The 1-1971773-7: This is the 5-position, single-row plug housing from TE's Power Triple Lock series, pitched at 6.00 mm. It mates with the matching receptacle (same series, same pitch) to form a wire-to-board or wire-to-wire connection rated for higher current than a standard 2.50 mm or 2.54 mm pitch housing would carry. The natural PBT, glass-filled body takes the heat and the vibration.
What the 6.00 mm pitch means for your harness
At 6.00 mm pitch, this housing is wider than the 5.08 mm pitch of the 2069882-6 receptacle or the 2.50 mm of the 1376477-6 plug. The wider pitch gives each contact more plastic wall between cavities, which improves dielectric withstand and lets the housing handle higher current per circuit without heat soak between adjacent terminals. It also means the mating receptacle must be the same 6.00 mm pitch – you cannot cross-mate with a 5.08 mm or 2.50 mm part. Five positions in one row means the connector body is narrow enough to fit in a tight enclosure or along a panel edge.
