TE Connectivity AMP Connectors 1-1971775-3 — Connector Housings

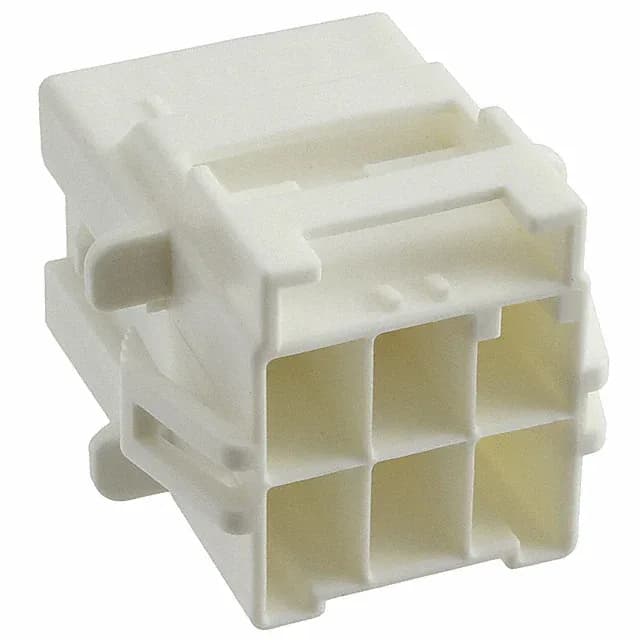

TE 1-1971775-3 Power Triple Lock Receptacle Housing, 6 Pos

MPN1-1971775-3
Active

TE Connectivity Power Triple Lock, Standard receptacle housing, 1-1971775-3, 6 positions, 2 rows, 0.236" (6.00mm) pitch, 0.319" (8.10mm) row spacing, panel mount, snap-in, latch lock, crimp termination, natural PBT, -55°C to 105°C.

$0.6700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPower Triple Lock, Standard
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-1971775-3 specifications
ParameterValue
SeriesPower Triple Lock, Standard
TypeTab
MountingPanel Mount, Snap-In
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-55°C ~ 105°C
ColorNatural
Insulation materialPolybutylene Terephthalate (PBT)
NoteContacts Not Included
Pitch0.236\" (6.00mm)
PackageBulk
Row spacing0.319\" (8.10mm)
Rows2
Contact terminationCrimp
Positions6

Product details

Panel-Mount Receptacle Housing for Power Triple Lock

It uses a 6.00 mm pitch with an 8.10 mm row spacing, giving you the clearance for power-level wiring in a panel-mount layout. The housing snaps into the panel and locks with the integral latch — no hardware needed for the mate.

This housing accepts tab-style crimp contacts (sold separately — the listing notes Contacts Not Included). Against the 6-position 1-2069882-6 at 5.08 mm pitch, this 1-1971775-3 runs a wider 6.00 mm pitch — that extra board real estate matters for creepage at higher working voltages or when routing thicker power traces between pads. The 1-1644055-3 is a 6-position plug at 6.35 mm pitch, a different mating half style with a latch holder rather than the integral latch lock here.

Frequently asked questions

What contacts fit the 1-1971775-3 housing?

The 1-1971775-3 accepts tab-style crimp contacts. The housing listing notes Contacts Not Included, so you must order the matching Power Triple Lock crimp terminals separately for your wire gauge.

Is 1-1971775-3 RoHS compliant?

Yes, the 1-1971775-3 is ROHS3 Compliant, clearing the regulatory requirement for most commercial and automotive BOMs.
