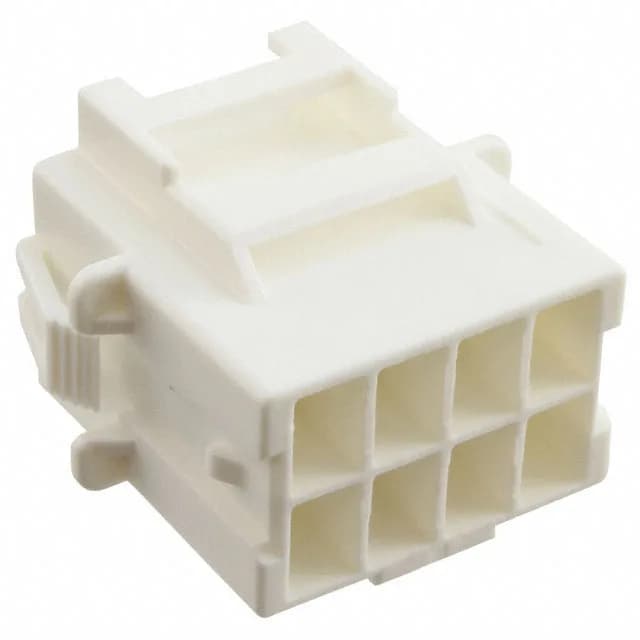

8-Position Power Triple Lock Receptacle Housing, 6.00 mm Pitch
It uses a 6.00 mm pitch and 8.10 mm row spacing, giving the contact layout enough room for the current each circuit will carry. This is a crimp-termination housing; contacts are ordered separately.
What the 6.00 mm Pitch and 8 Positions Mean for Fit
At 6.00 mm pitch, this receptacle sits on a wider grid than the 5.08 mm pitch of the 1-2069882-6 sibling. The wider pitch gives more creepage between adjacent circuits — relevant if the application pushes voltage or has conductive debris paths. The 8 positions match a BOM calling for 8 circuits in a 2-row layout. The 8.10 mm row spacing is fixed; the mating plug must share that same row-to-row dimension.
This is a crimp-termination housing. The contacts — tab-type terminals — are not included. Panel mount is snap-in; no additional hardware is required for the panel cutout.
